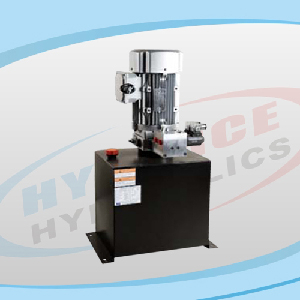

PPDS Series Power Packs for Double-Scissor Lift

This power pack is designed for a lift table, which is consisted of high pressure gear pump, AC motor, multi-functional manifold, valves, tank, etc. The lowering movement is activated by a solenoid valve and the speed is controlled by a needle valve.
Port Size:
BSP 1/4" BSP 3/8" SAE-4 SAE-6
Motor voltage:
AC220 AC380
Working Pressure:
16MPa 21MPa
Pump displacement:
2.0cc/r 2.5cc/r 3.3cc/r 4.2cc/r
Tank capacity:
15L 20L 25L
Quantity:
Inquire Add to Basket

  • PPDS-A2/2.2-G2.5-SCV15-P21-G24M-4G, PPDS-A2/2.2-G2.5-SCV20-P21-G24M-4G, PPDS-A2/2.2-G3.3-SCV25-P21-G24M-6G, PPDS-A2/2.2-G2.5-SCV15-P21-G12M-4G, PPDS-A2/2.2-G2.5-SCV15-P21-W220M-4G, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • P27-P28

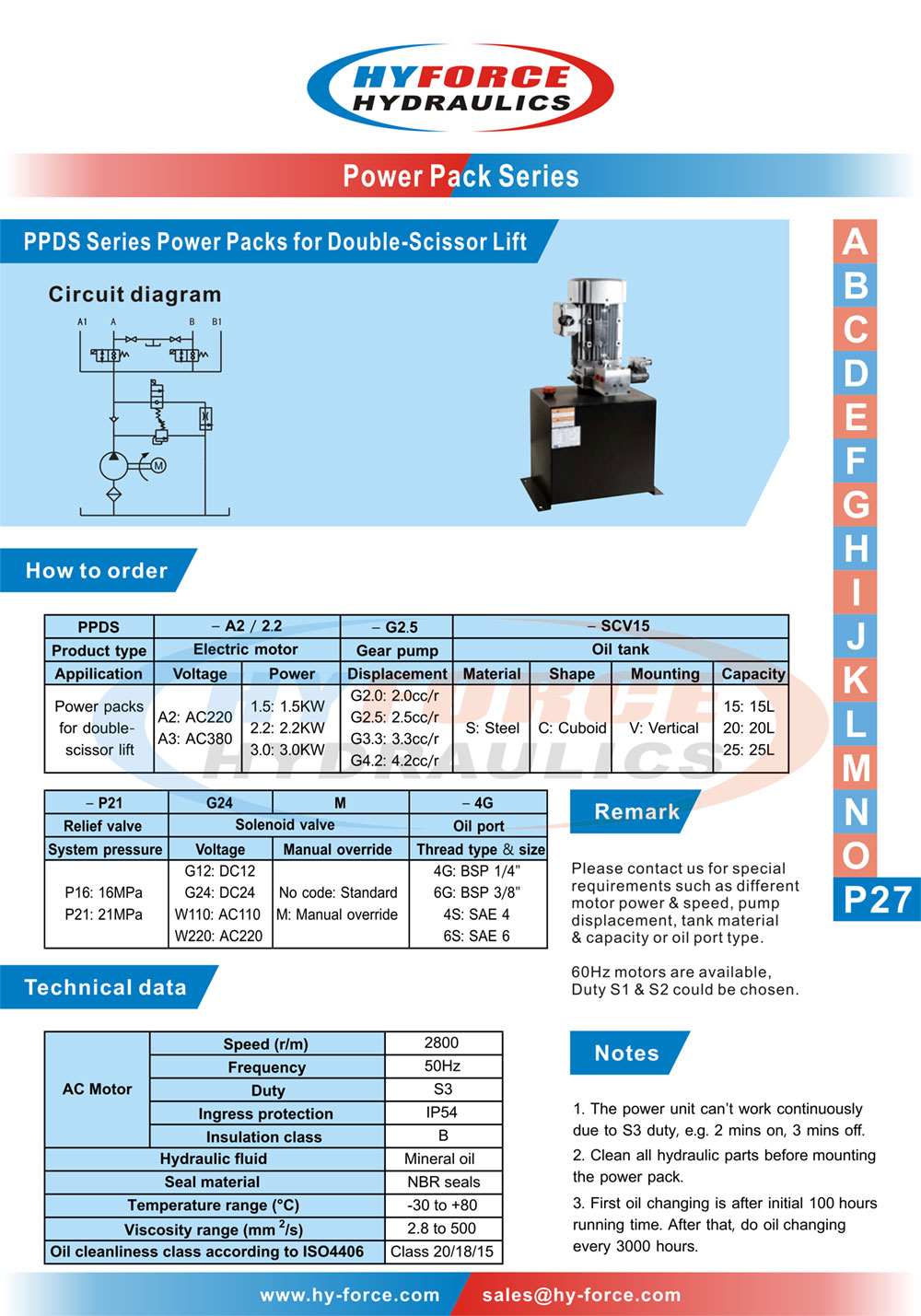

P27

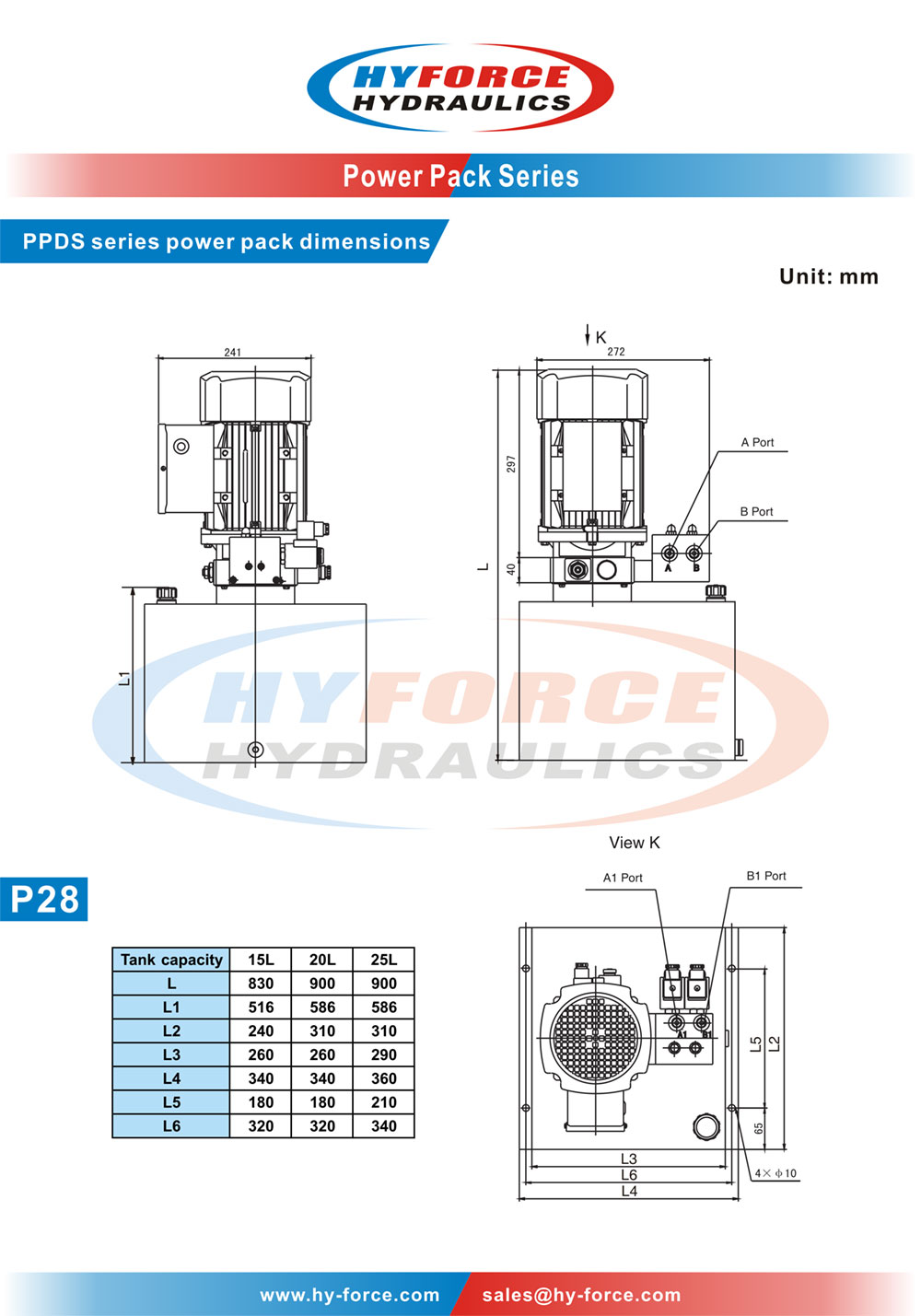

P28
