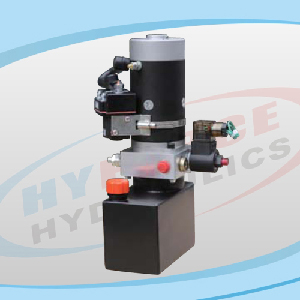

PPPS1 Series Power Packs for Powered Stacker

The power pack is consisted of a high pressure gear pump, low noise DC motor, multi-functional manifold, valves, tank, etc. It can be widely used in the industry of logistic devices such as powered stackers. The lowering movement is controlled by a solenoid valve and the speed is controlled by a balance valve.
Port Size:
BSP 1/4" SAE-4
Motor voltage:
DC12 DC24
Working Pressure:
16MPa 21MPa
Pump displacement:
0.5cc/r 0.75cc/r 1.0cc/r
Tank capacity:
1L 1.5L
Quantity:
Inquire Add to Basket

  • PPPS1-D2/0.75-G0.5-SCV1-P21-G24M-4G, PPPS1-D2/0.75-G1.0-SCV1-P21-G24M-4G, PPPS1-D2/0.75-G1.0-SCV1-P16-G24M-4G, PPPS1-D1/0.75-G0.5-SCV1-P21-G12M-4G, PPPS1-D1/0.75-G1.0-SCV1-P21-G12M-4G, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • P11-P12

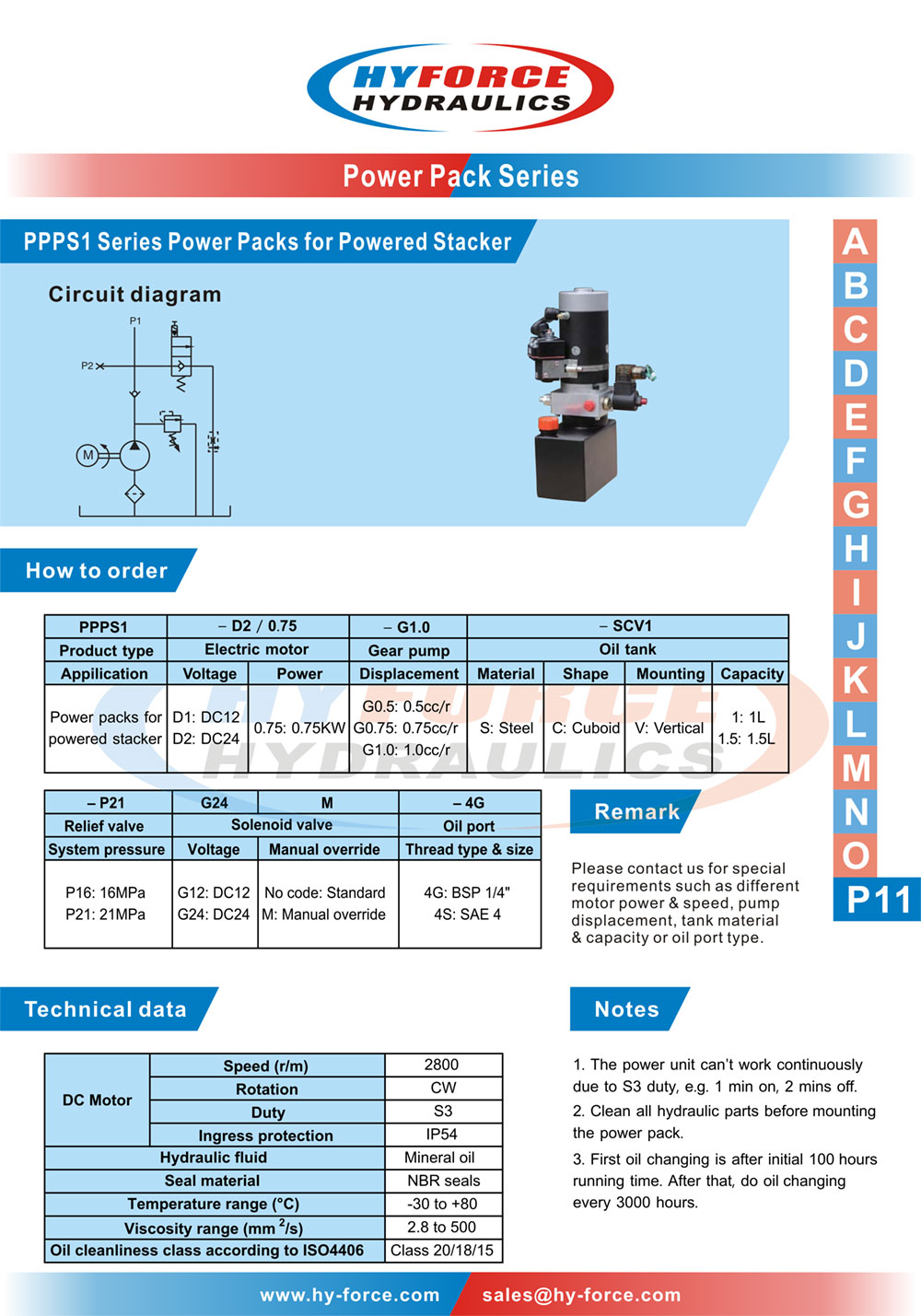

P11

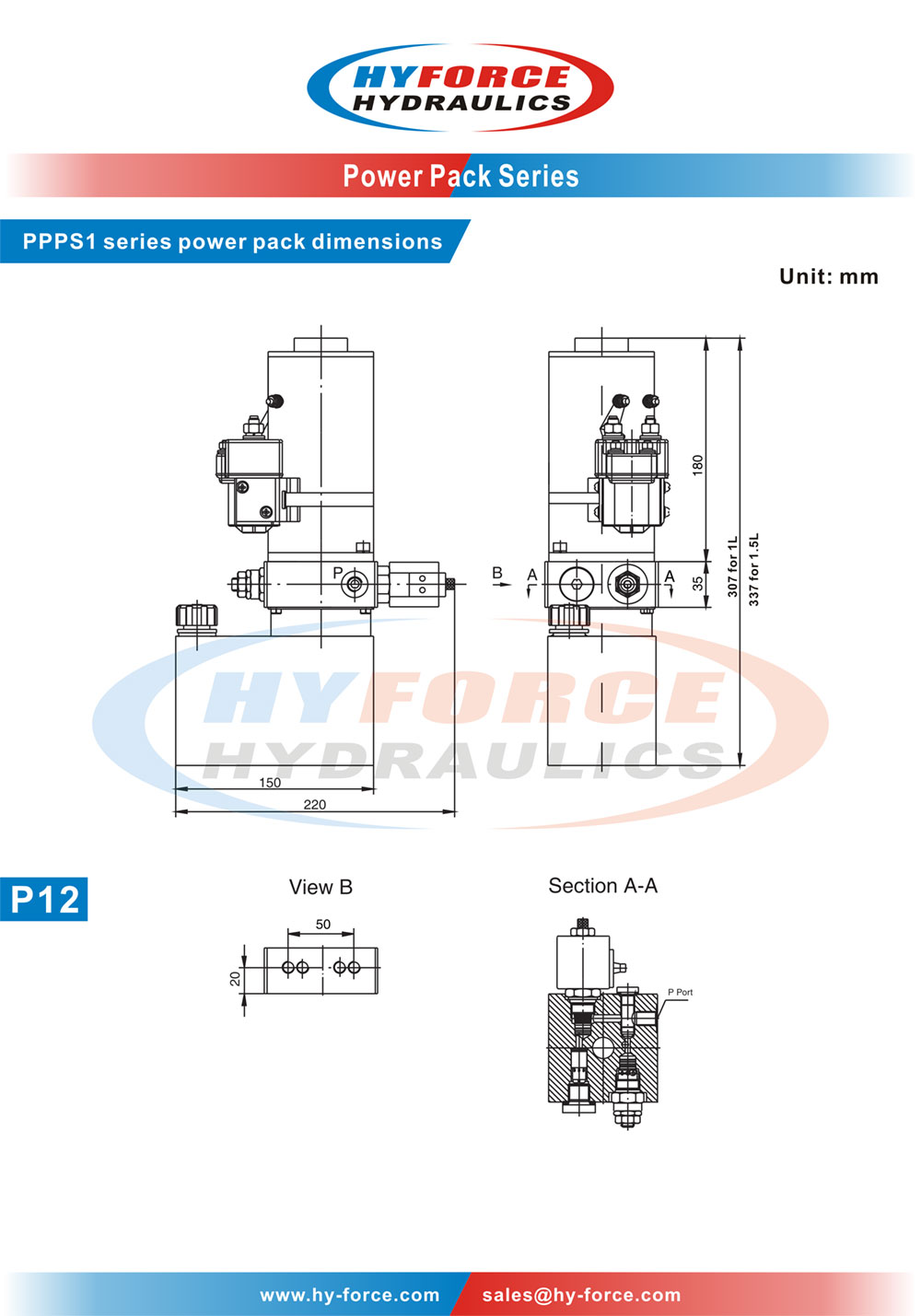

P12
