4WE4 Series Solenoid Operated Directional Control Valves

Overview

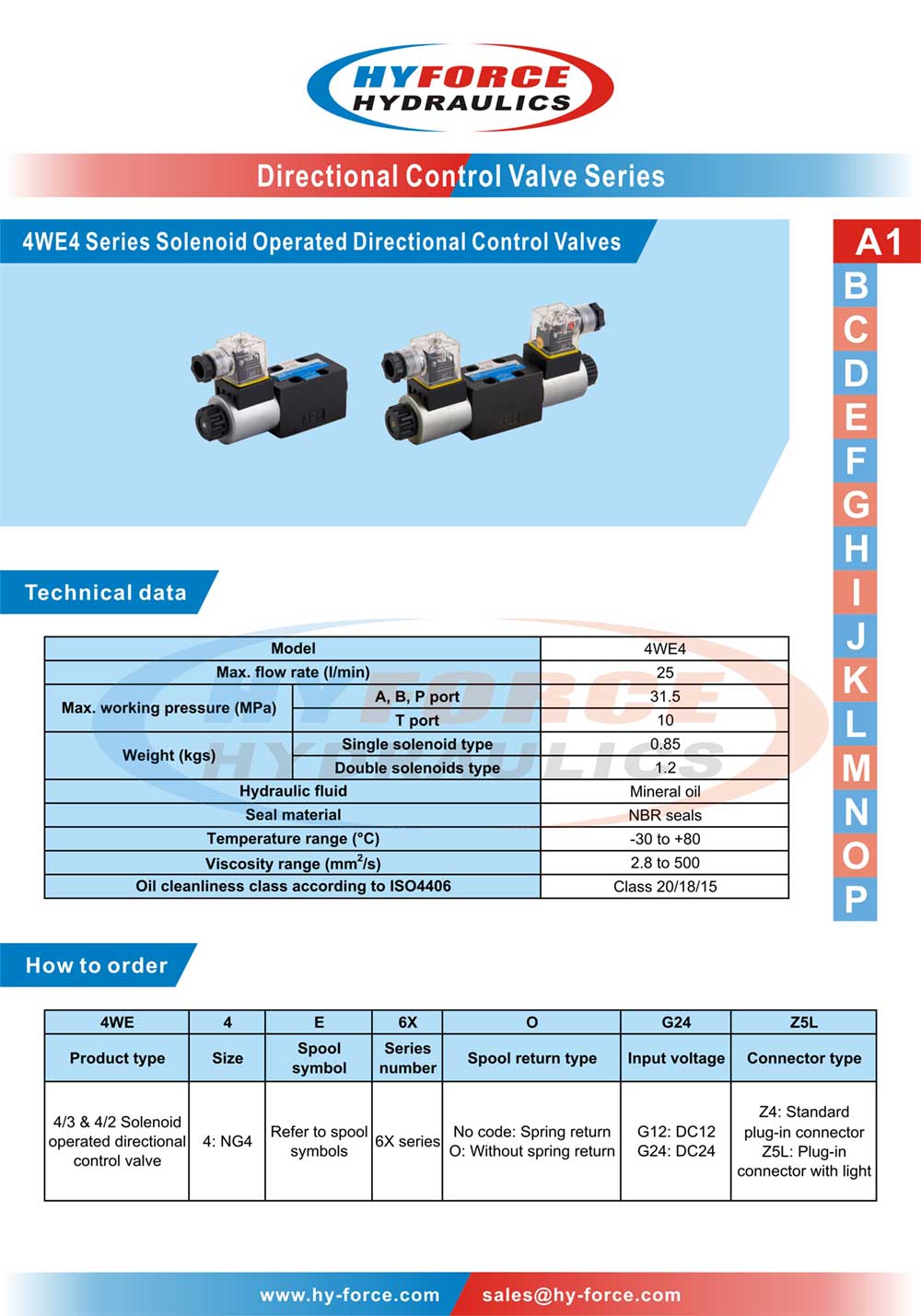

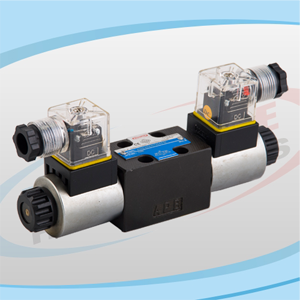

The 4WE4 is a direct-operated solenoid directional control valve designed for reliable hydraulic flow direction management in industrial hydraulic systems. This compact, high-performance valve features dual solenoid coils with transparent protective covers, enabling precise control of hydraulic fluid flow paths in both directions.

Key Features

Primary Functions

1. Flow Direction Control — Switches hydraulic fluid flow between different actuator ports (A, B, P, T) to control cylinder extension/retraction or motor rotation direction

2. Circuit Isolation — Blocks flow in neutral position to maintain load position

3. Pressure Management — Works with system relief valves to manage pressure conditions

4. Proportional Response — Optional damped spool designs for smooth transitions

Detailed Application Scenarios

1. Injection Molding Machines

• Function: Controls mold clamping cylinder movement and injection unit positioning

• Benefit: Precise timing ensures consistent part quality and cycle time optimization

• Typical Setup: 4WE4 valves manage core pull, ejector, and mold open/close circuits

2. Metal Forming & Press Machinery

• Function: Directs hydraulic press ram movement for stamping, bending, and deep drawing operations

• Benefit: Reliable switching under high-pressure conditions ensures operator safety and production consistency

• Configuration: Often used in tandem with accumulator circuits for rapid approach and pressing speeds

3. Mobile Hydraulic Equipment

• Applications:

  • Excavators: Controls boom, arm, and bucket cylinder operations

  • Wheel Loaders: Manages lift arm and bucket tilt functions

  • Aerial Work Platforms: Controls platform elevation and leveling

• Advantage: Compact size fits space-constrained mobile equipment; robust construction withstands vibration and temperature extremes

4. Material Handling Systems

• Function: Powers conveyor positioning, lifting mechanisms, and sorting gates

• Integration: Easily interfaces with PLC control systems for automated warehouse operations

• Reliability: High switching frequency capability (up to 15,000 cycles/hour) supports continuous operation

5. Machine Tool Hydraulics

• Applications:

  • CNC machine tool changers

  • Workpiece clamping systems

  • Tailstock positioning

• Precision: Fast response time (< 30 ms) ensures accurate positioning in automated machining cycles

6. Renewable Energy Systems

• Wind Turbines: Pitch control hydraulic circuits for blade angle adjustment

• Solar Tracking: Hydraulic positioning systems for photovoltaic panel orientation

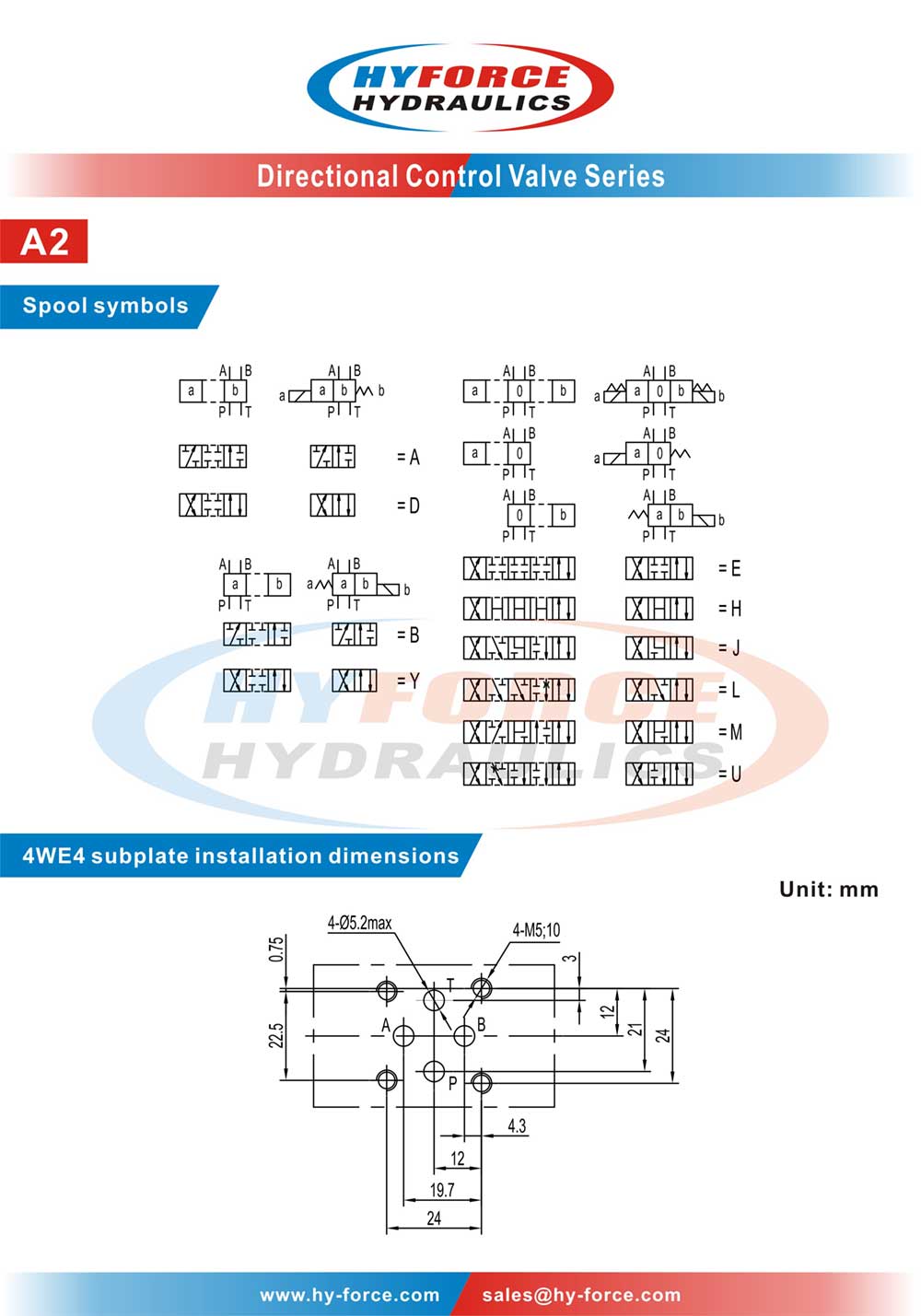

Technical Advantages

• Wet Pin Solenoid Design: Ensures quiet operation and extended coil life by dissipating heat through hydraulic fluid

• Hardened Spool & Sleeve: Precision-ground components provide minimal leakage (< 5 drops/min) and long service life

• IP65 Protection: Solenoid enclosures resist dust and water ingress for harsh industrial environments

• Modular Design: Easy maintenance with replaceable coils and service kits; minimal downtime for repairs

Installation & Maintenance Notes

• Filtration Requirement: Maintain system cleanliness to ISO 4406 20/18/15 or better to ensure spool longevity

• Mounting Orientation: Can be mounted in any position; solenoids preferably vertical for optimal heat dissipation

• Electrical Connection: DIN 43650 connector standard; LED indicators optional for power status monitoring

Conclusion

The 4WE4 solenoid directional valve represents a versatile, industry-standard solution for hydraulic flow control across diverse industrial sectors. Its robust construction, standardized mounting interface, and reliable performance make it the preferred choice for OEM equipment manufacturers and hydraulic system integrators worldwide. Whether in factory automation, mobile machinery, or specialized industrial processes, the 4WE4 delivers consistent, precise hydraulic control that meets the demands of modern hydraulic engineering.
