| Quantity: | |
|---|---|
4WE5D6X/G12Z5L, 4WE5D6X/G24Z5L, 4WE5D6X/W110Z5L, 4WE5D6X/W220Z5L, 4WE5E6X/G12Z5L, 4WE5E6X/G24Z5L, 4WE5E6X/W110Z5L, 4WE5E6X/W220Z5L, 4WE5M6X/G12Z5L, 4WE5M6X/G24Z5L, 4WE5M6X/W110Z5L, etc.
HYFORCE HYDRAULICS / OEM is also avaliable.

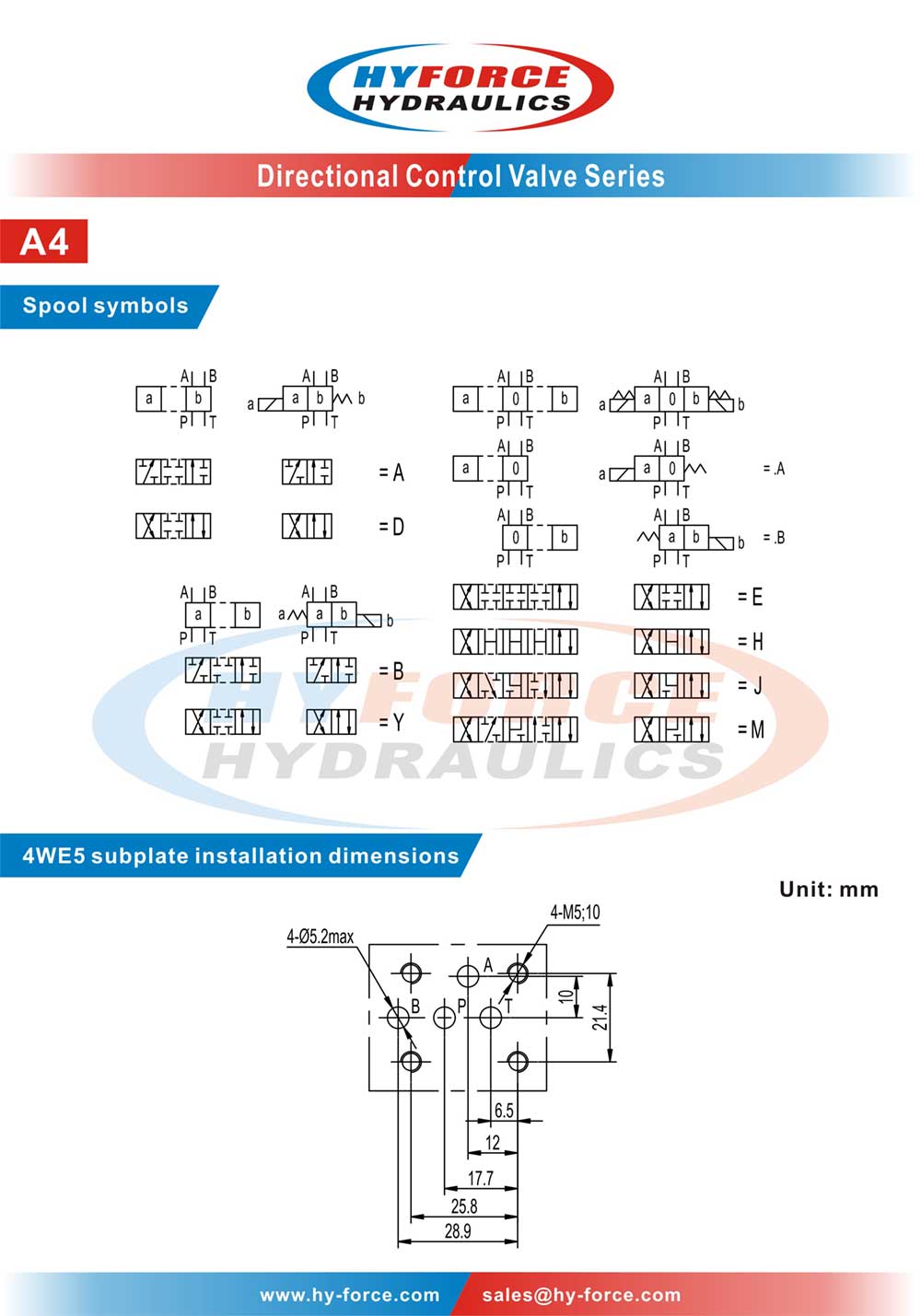

A3-A4

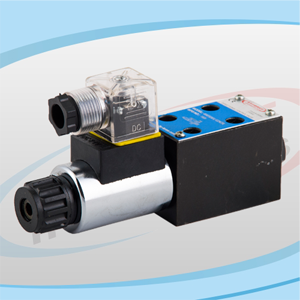

The 4WE5 is a direct-operated solenoid directional control valve designed for reliable hydraulic flow direction management in industrial hydraulic systems. This compact, high-performance valve features dual solenoid coils with transparent protective covers, enabling precise control of hydraulic fluid flow paths in both directions.
Feature | Description |
|---|---|
Model Series | 4WE5 (mounting pattern) |
Operation Type | Direct solenoid actuation |
Configuration | 4-way, 2-position or 3-position spool design |
Solenoid Voltage | Available in 12V DC, 24V DC, 110V AC, 220V AC options |
Maximum Pressure | Up to 315 bar (4,568 psi) |
Maximum Flow Rate | Up to 15 L/min (4 GPM) |
Mounting Interface | Subplate mounting with standard port pattern |
Manual Override | Optional emergency manual operation |
Flow Direction Control — Switches hydraulic fluid flow between different actuator ports (A, B, P, T) to control cylinder extension/retraction or motor rotation direction
Circuit Isolation — Blocks flow in neutral position to maintain load position
Pressure Management — Works with system relief valves to manage pressure conditions
Proportional Response — Optional damped spool designs for smooth transitions
Scenario 1: Injection Molding Machine In plastic injection molding, the 4WE5 controls the clamping cylinder's open/close cycle. The solenoid receives signals from the machine controller to switch flow direction, enabling precise mold positioning with cycle times under 5 seconds. The compact size fits easily in crowded manifold assemblies.
Scenario 2: Compact Excavator Arm Control For small excavators (1.5-3.5 ton), the 4WE5 manages auxiliary hydraulic functions like quick-coupler attachments or thumb operations. Its IP65-rated solenoid enclosure withstands outdoor conditions while providing responsive control for operator joysticks.
Scenario 3: Automated Packaging Lines In conveyor systems with pneumatic-hydraulic power units, the 4WE5 directs flow to compact hydraulic cylinders that position products for labeling or sealing. The valve's fast response time (<50ms) ensures synchronization with high-speed production lines (up to 200 units/minute).
Wet Pin Solenoid Design: Ensures quiet operation and extended coil life by dissipating heat through hydraulic fluid
Hardened Spool & Sleeve: Precision-ground components provide minimal leakage (< 5 drops/min) and long service life
IP65 Protection: Solenoid enclosures resist dust and water ingress for harsh industrial environments
Modular Design: Easy maintenance with replaceable coils and service kits; minimal downtime for repairs
Filtration Requirement: Maintain system cleanliness to ISO 4406 20/18/15 or better to ensure spool longevity
Mounting Orientation: Can be mounted in any position; solenoids preferably vertical for optimal heat dissipation
Electrical Connection: DIN 43650 connector standard; LED indicators optional for power status monitoring
