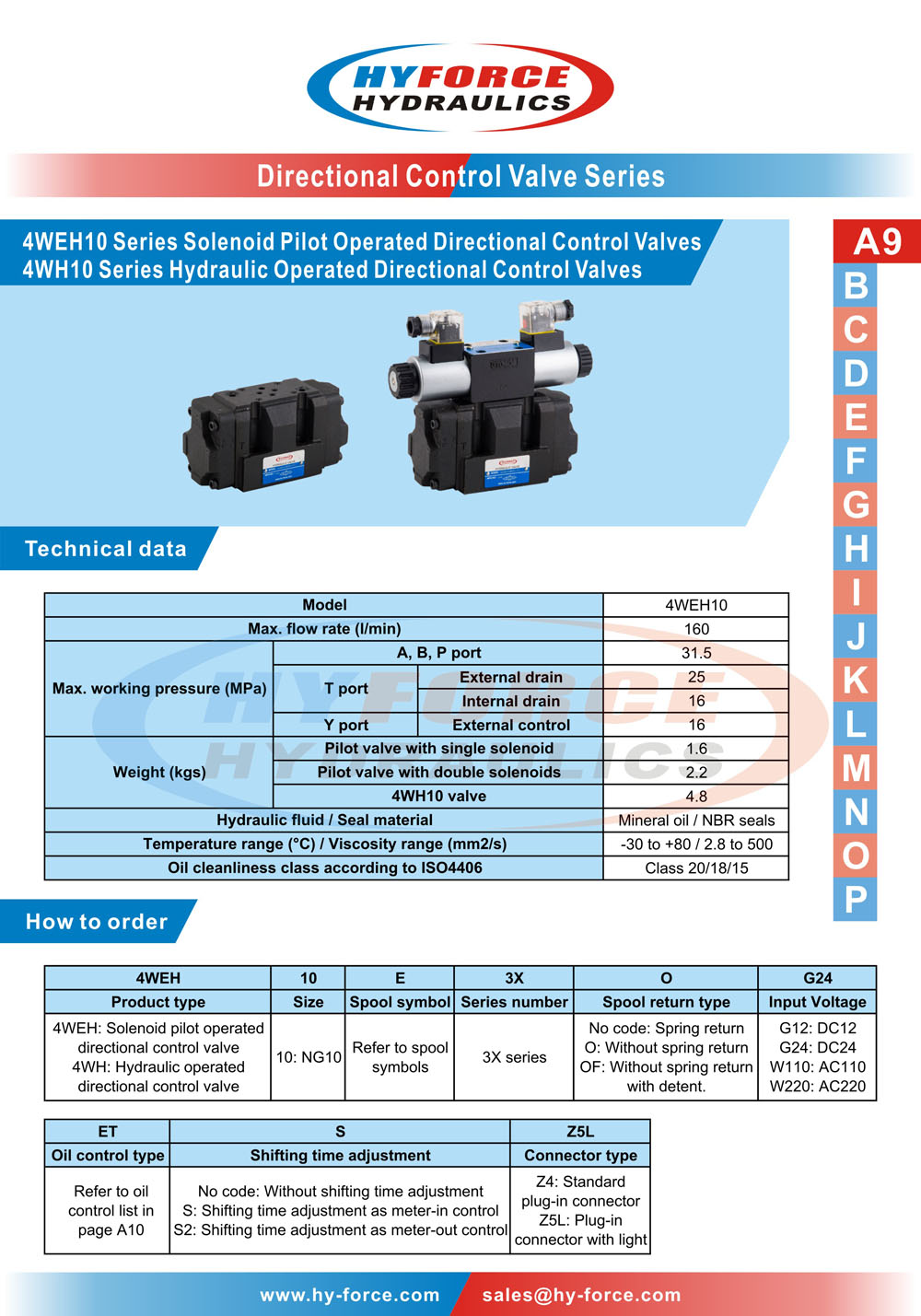

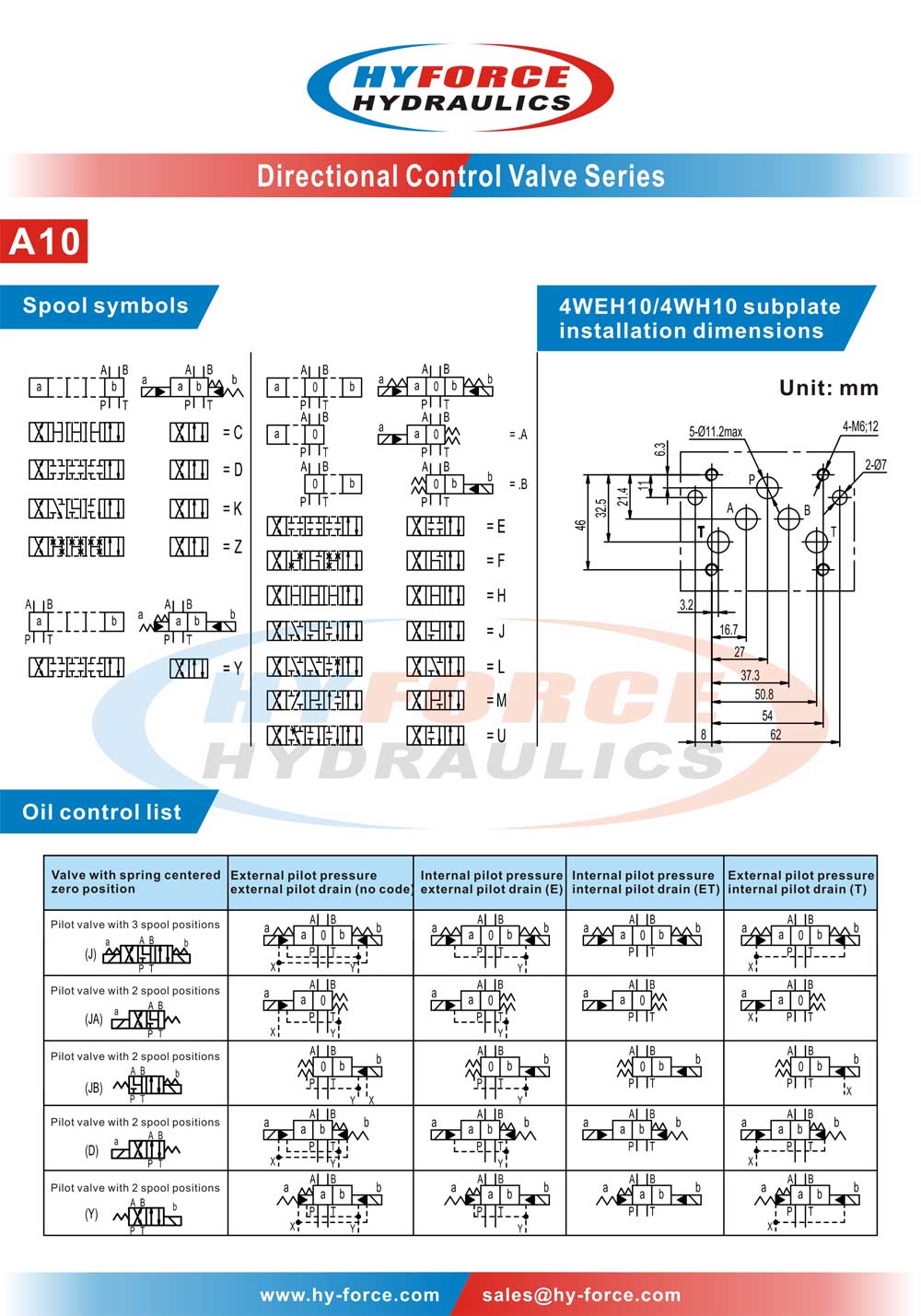

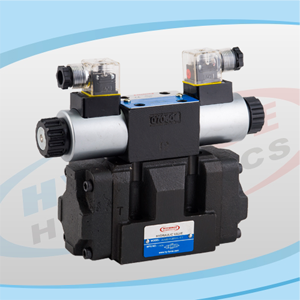

4WEH10 Series Solenoid Pilot Operated Directional Control Valves & 4WH10 Series Hydraulic Operated Directional Control Valves

4WEH10 series solenoid pilot operated directional control valves are solenoid pilot operated spool type valves. This series are used to control the start, stop and direction of the oil flow.
4WH10 series hydraulic operated directional control valves can be used to change the direction of hydraulic oil by moving the main spool when the valve receives a hydraulic signal from the pilot hydraulic oil.

Availability:

Quantity:



Inquire Add to Basket

Model:
4WEH10E6X/G12Z5L, 4WEH10E6X/G24Z5L, 4WEH10E6X/W110Z5L, 4WEH10E6X/W220Z5L, 4WEH10E6X/G12ETZ5L, 4WEH10E6X/G24ETZ5L, 4WEH10E6X/W110ETZ5L, 4WEH10E6X/W220ETZ5L, 4WEH10D6X/G12Z5L, 4WEH10D6X/G24Z5L, etc.
Brand:
HYFORCE HYDRAULICS / OEM is also avaliable.
Code:
A9-A10
