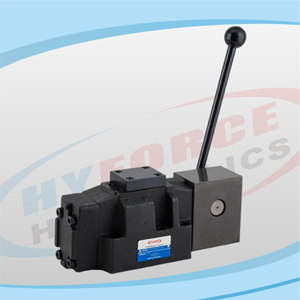

4WMM Series Manual Operated Directional Control Valves

Overview

The 4WMM Series is a heavy-duty hand-lever operated directional control valve engineered for high-flow hydraulic applications requiring robust manual control. Available in NG16 (16mm/CETOP 7) and NG25 (25mm/CETOP 8) port sizes, this industrial-grade valve delivers exceptional flow capacity and reliable performance in demanding hydraulic systems where precise manual direction control is essential.

Key Features

Primary Functions

1. High-Flow Direction Control — Manages large hydraulic flows for heavy-duty cylinder and motor operation in industrial and mobile equipment

2. Load Holding & Positioning — Various spool center configurations enable load holding, floating, or pressure unloading functions

3. Emergency Manual Override — Serves as reliable backup control in automated systems or primary control in remote locations without electrical infrastructure

Detailed Application Scenarios

1. Heavy Industrial Presses & Stamping Equipment

• Function: Controls main ram motion in large hydraulic presses (500-ton capacity and above)

• Advantage: High flow capacity (NG25: 650 L/min) supports rapid approach and pressing speeds; manual control allows operator judgment during critical forming operations

• Typical Setup: 4WMM-25 for main cylinder; 4WMM-16 for cushion or ejector cylinders; spring-centered spools ensure automatic return to neutral for safety

2. Mobile Construction & Mining Machinery

• Applications:

  • Hydraulic Excavators: Manual control for boom, arm, and bucket functions in 20-50 ton class machines

  • Wheel Loaders: Lift arm and bucket tilt control in heavy-duty mining loaders

  • Dump Trucks: Hydraulic hoist control for mining and quarry operations

  • Drilling Rigs: Feed and rotation control for exploration and blast-hole drilling

• Benefit: Rugged construction withstands extreme vibration, dust, and temperature variations; mechanical reliability eliminates electrical failure risks in remote sites

3. Marine & Offshore Hydraulic Systems

• Applications:

  • Deck Cranes & Winches: Cargo handling and anchor windlass control

  • Steering Gear: Manual backup for vessel steering systems

  • Hatch Covers: Large hydraulic systems for bulk carrier and tanker operations

  • Offshore Platform Equipment: Drilling support and production system hydraulics

• Compliance: Meets marine classification requirements (DNV, ABS, LR) for mechanical control reliability; corrosion-resistant coatings available for saltwater environments

4. Steel Mill & Metallurgical Equipment

• Function: Controls hydraulic actuators in:

  • Rolling mill gap adjustment systems

  • Continuous casting mold oscillation

  • Slab and billet handling manipulators

  • Furnace door and charging systems

• Durability: Heavy-duty cast iron body resists thermal shock and mechanical impact in high-temperature environments

5. Injection Molding Machines (Large Capacity)

• Function: Manual control for clamping unit and injection unit in large-tonnage machines (1000+ ton clamping force)

• Precision: Smooth lever operation enables gradual pressure buildup during mold closing to protect delicate molds

• Maintenance: Used during mold setup, purging, and troubleshooting operations

6. Hydraulic Test Stands & Power Units

• Function: Directional control for high-flow hydraulic test circuits and portable power units

• Flexibility: Various spool configurations allow testing of different hydraulic component types under controlled conditions

• Capacity: NG25 version handles full output of large piston pumps (up to 75 kW drive motors)

7. Renewable Energy Systems

• Wind Turbines: Pitch control hydraulic systems for 2-5 MW class turbines; manual override for blade feathering during maintenance

• Hydropower: Gate and valve control in small hydroelectric installations

Technical Advantages

• High-Strength Casting Body: Ductile iron construction with ribbed reinforcement withstands pressure spikes up to 400 bar without deformation

• Precision-Honed Spool & Bore: Mirror-finished spool surfaces (Ra 0.4 μm) ensure minimal leakage and smooth operation under high pressure differentials

• Heavy-Duty Lever Mechanism: Forged steel lever and pivot assembly rated for >1 million cycles; ball-joint connection eliminates wear and backlash

• Progressive Flow Control: Lever angle proportional to spool displacement allows precise metering for gradual acceleration/deceleration of large masses

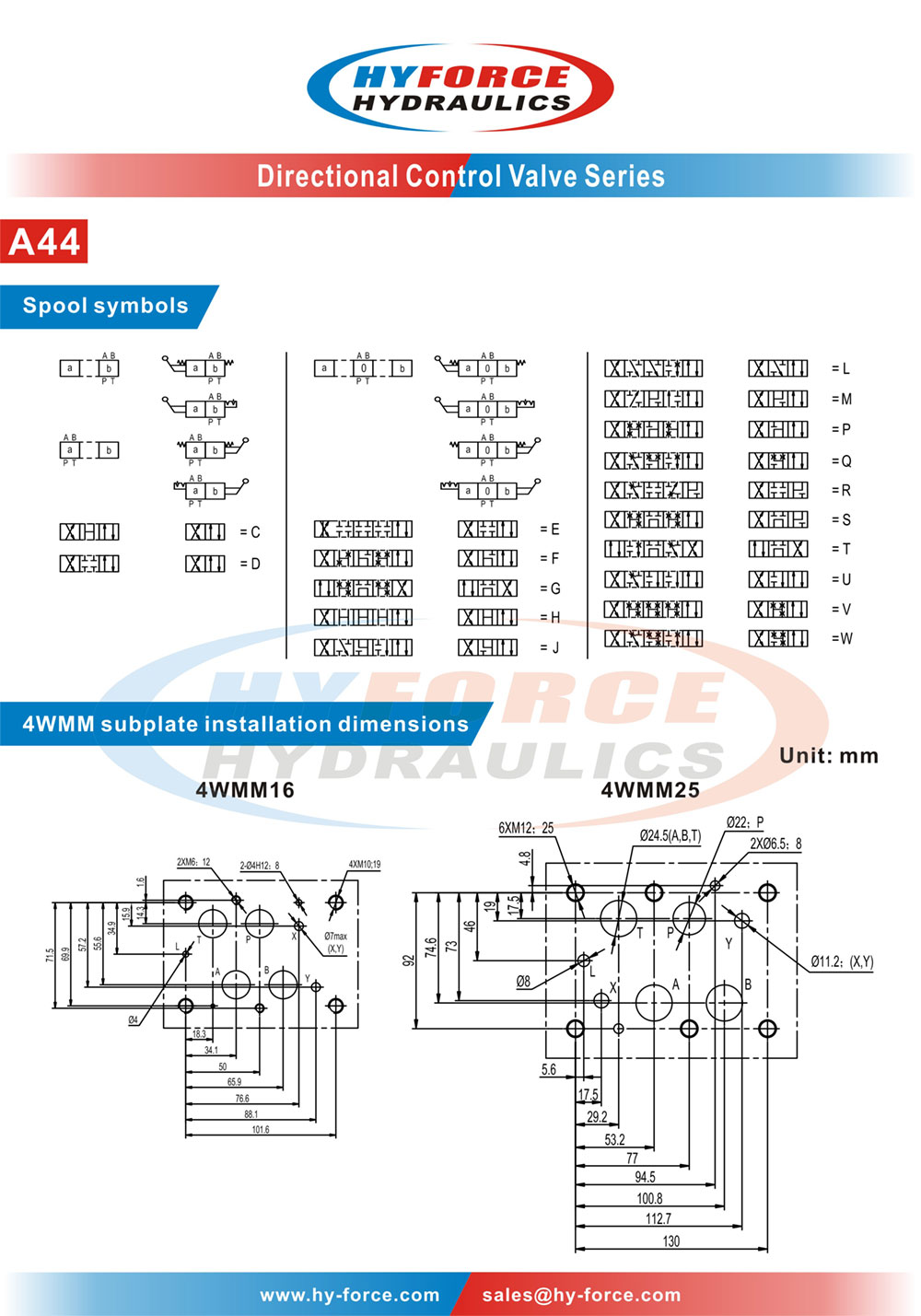

• Modular Subplate System: Standardized mounting patterns enable easy integration with relief valves, flow controls, and accumulator circuits in custom manifold blocks

Installation & Maintenance Notes

• Mounting Considerations: NG16 and NG25 valves require substantial subplate or manifold support due to weight (NG25: ~19.5 kg); ensure rigid mounting to prevent stress on hydraulic connections

• Filtration Requirement: Critical for high-flow systems—maintain ISO 4406 18/16/13 or better to prevent spool sticking under high pressure

• Lever Positioning: Install lever within comfortable operator reach; consider remote cable linkage for panel mounting in operator cabs

• Pressure Shock Protection: Install accumulators or shock suppressors in high-flow, fast-switching applications to prevent mechanical damage to spool lands

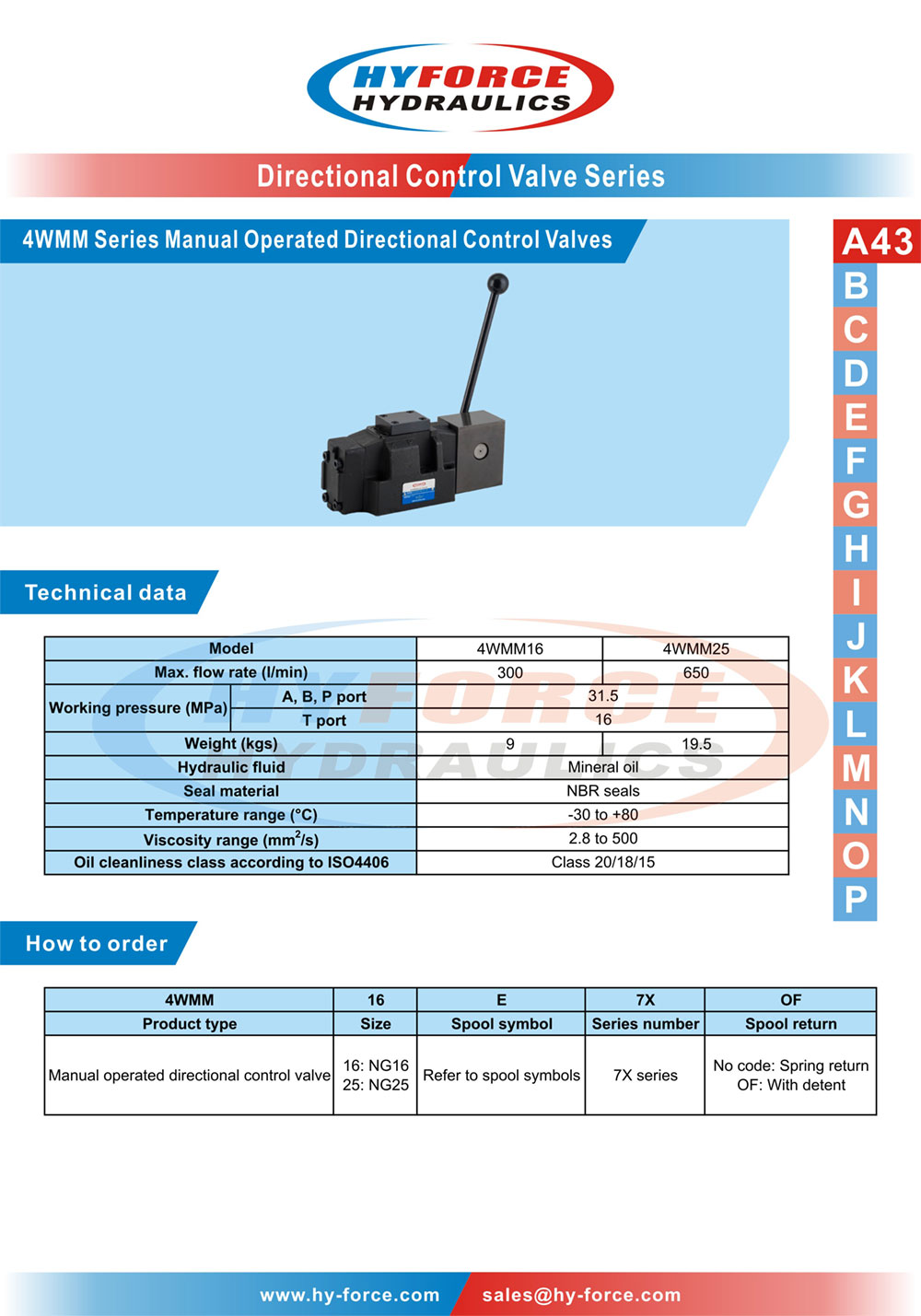

4WMM-16 vs 4WMM-25 Selection Guide

Conclusion

The 4WMM Series manual directional control valve represents the heavy-duty standard for high-flow hydraulic applications requiring reliable manual control. With flow capacities up to 650 L/min and robust construction engineered for the harshest industrial environments, the 4WMM-16 and 4WMM-25 provide the performance, durability, and operator control precision demanded by critical hydraulic systems worldwide. Whether controlling massive industrial presses, rugged mining equipment, or essential marine systems, the 4WMM series delivers consistent, safe, and precise hydraulic direction control that operators can depend on.
