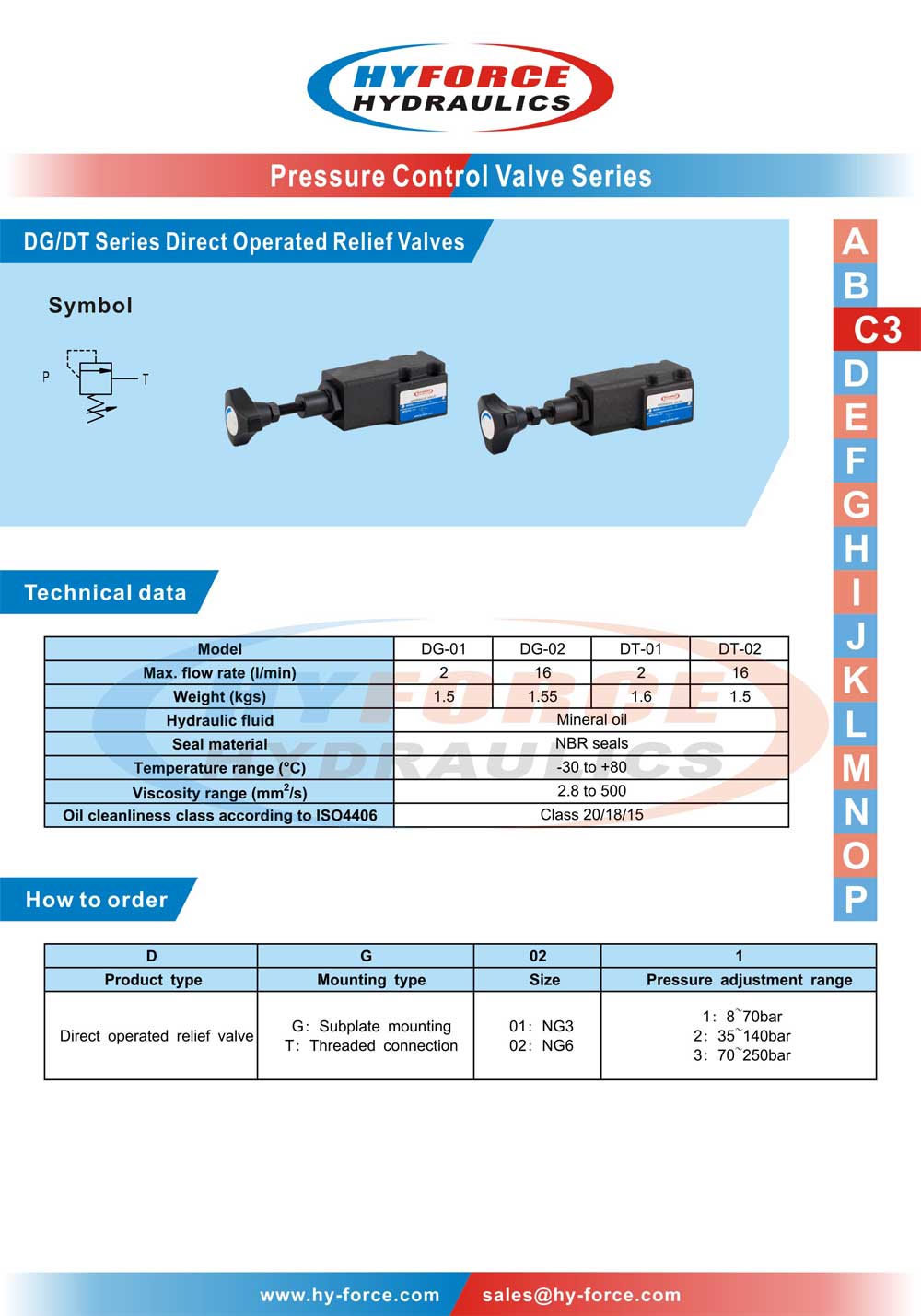

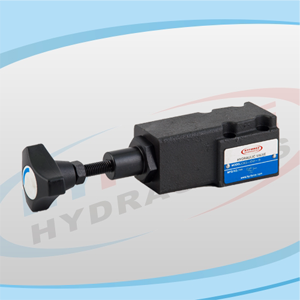

DG/DT Series Direct Operated Relief Valves

Overview

The DG/DT series represents a premium line of direct-acting pressure relief valves engineered for reliable pressure control and comprehensive system protection in demanding hydraulic applications. This valve delivers precise pressure regulation while maintaining compact dimensions for space-constrained installations.

Key Features

• Direct-Acting Operation: Ensures immediate response to pressure fluctuations without pilot stage delay, providing superior dynamic performance

• Precision Adjustment Mechanism: Equipped with a clearly marked ergonomic handwheel featuring directional indicators for intuitive pressure setting and fine-tuning

• Durable Construction: Manufactured from high-grade materials with corrosion-resistant finishes for extended service life in harsh environments

• Visual Position Indication: Adjustment handwheel includes clear directional markers to facilitate accurate pressure calibration and field adjustments

• Wide Operating Range: Accommodates diverse pressure requirements across multiple industrial sectors

Primary Functions

1. Pressure Limiting & Regulation: Maintains hydraulic system pressure within predetermined safe operating parameters by diverting excess flow to the reservoir

2. System Overpressure Protection: Safeguards critical hydraulic components—including pumps, actuators, seals, and piping—from damage caused by pressure spikes

3. Thermal Expansion Compensation: Relieves pressure buildup resulting from fluid thermal expansion in closed circuits

4. Emergency Safety Function: Acts as a fail-safe device during abnormal operating conditions or system malfunctions

5. Pressure Holding: Maintains stable working pressure in accumulator circuits and clamping applications

Detailed Application Scenarios

Manufacturing & Industrial Automation

• Plastic Injection Molding Machines: Precise pressure control for mold clamping force regulation and injection process optimization, ensuring consistent part quality and machine protection

• Metal Forming Equipment: Hydraulic presses and stamping machines requiring reliable overload protection to prevent expensive die damage and ensure operator safety

• Machine Tool Hydraulics: Maintains consistent pressure in CNC machine clamping circuits, tool changers, and spindle hydraulic systems

• Automotive Production Lines: Assembly press systems and robotic fixture clamping requiring repeatable pressure control

Mobile & Off-Highway Equipment

• Construction Machinery: Excavators, bulldozers, and loaders utilizing the DG/DT series for boom, arm, and attachment circuit protection against shock loads and pressure spikes

• Agricultural Machinery: Tractor hydraulic systems, harvester header controls, and implement lift circuits requiring dependable pressure regulation in dusty, high-vibration environments

• Material Handling Equipment: Forklift mast controls, reach truck hydraulic systems, and overhead crane safety circuits

• Mining & Quarry Equipment: Harsh-duty applications including drill rigs, crushing equipment, and conveyor tensioning systems exposed to extreme contamination and temperature variations

Energy & Infrastructure

• Hydraulic Power Units: Centralized hydraulic systems serving multiple actuators with varying pressure demands, providing primary or secondary pressure relief

• Wind Energy Systems: Hydraulic pitch control mechanisms in wind turbines requiring precise pressure maintenance for blade positioning and emergency feathering

• Water Treatment & Management: Gate control systems, valve actuators, and dam management hydraulics requiring reliable long-term operation

• Power Generation: Turbine control systems and auxiliary hydraulic equipment in thermal and hydroelectric plants

Specialized & Test Applications

• Hydraulic Test Benches: Pressure simulation and control in component testing facilities, R&D laboratories, and quality assurance systems

• Aerospace Ground Support: Aircraft hydraulic test equipment and maintenance systems requiring high precision and reliability

• Marine & Offshore: Deck machinery, winch controls, and steering gear protection on vessels and offshore platforms exposed to saltwater corrosion

• Military & Defense: Ruggedized hydraulic systems in tactical vehicles and support equipment requiring field-proven reliability

Technical Advantages

The DG/DT series direct-acting configuration offers distinct operational benefits:

• Minimal Pressure Override: The simple poppet or ball-type direct-acting design exhibits low pressure differential between cracking pressure and full-flow pressure, ensuring stable system operation

• Flow-Independent Stability: Maintains consistent pressure control characteristics across varying flow rates from zero to maximum rated capacity

• Contamination Tolerance: Fewer precision clearances compared to pilot-operated designs result in superior performance in moderately contaminated hydraulic fluids

• Simplified Maintenance: Straightforward disassembly and component replacement procedures minimize downtime and maintenance costs

• Cost-Effective Solution: Eliminates complex pilot stage components while delivering reliable pressure control for moderate-flow applications

Installation & Configuration

The DG/DT valve is designed for flexible integration:

• Manifold Mounting: Standard sandwich plate interface compatible with ISO 4401 and industry-standard mounting patterns

• Stack Valve Configurations: Suitable for vertical stacking in compact hydraulic valve assemblies

• Field Adjustability: The prominent handwheel with clear directional arrows (clockwise/counter-clockwise indicators) enables on-site pressure calibration without specialized tools

• Tamper-Resistant Options: Available with protective caps or lockable adjustment mechanisms to prevent unauthorized pressure modifications

Operating Recommendations

For optimal performance and longevity:

• Install as close as possible to the pump outlet or pressure source for maximum protection effectiveness

• Ensure adequate tank line sizing to prevent backpressure that could affect relief pressure accuracy

• Regular verification of pressure settings using calibrated test gauges is recommended for safety-critical applications

• Compatible with standard mineral oil-based hydraulic fluids; consult manufacturer for synthetic fluid or high water-based fluid compatibility
