DSG-02 Series Solenoid Operated Directional Control Valves

Overview

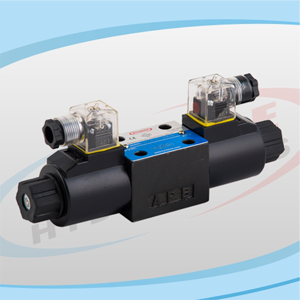

The DSG-02 is a direct-operated solenoid directional control valve designed for reliable hydraulic flow direction management in industrial hydraulic systems. This compact, high-performance valve features dual solenoid coils with transparent protective covers, enabling precise control of hydraulic fluid flow paths in both directions.

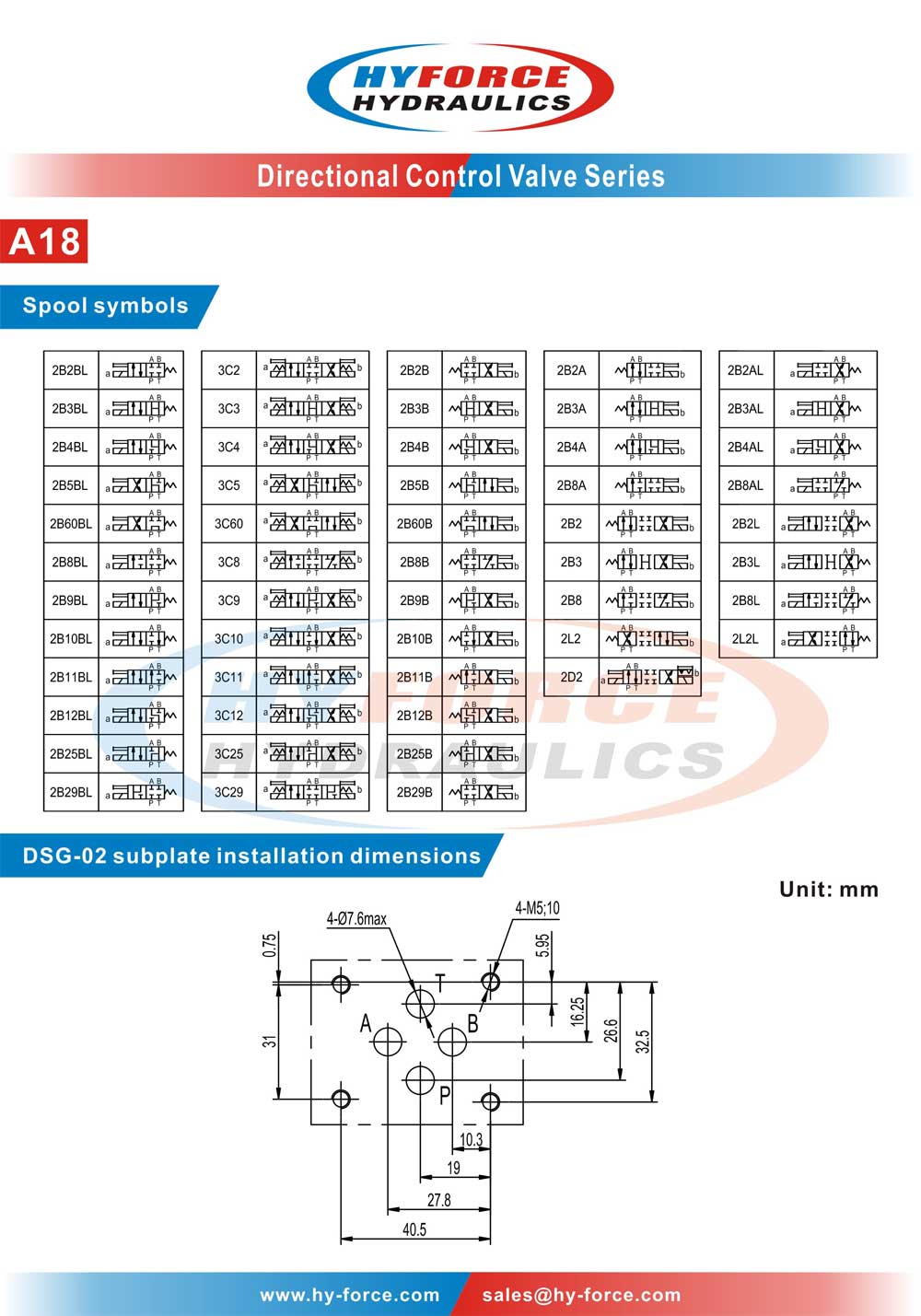

Key Features

Primary Functions

1. Flow Direction Control — Switches hydraulic fluid flow between different actuator ports (A, B, P, T) to control cylinder extension/retraction or motor rotation direction

2. Circuit Isolation — Blocks flow in neutral position to maintain load position

3. Pressure Management — Works with system relief valves to manage pressure conditions

4. Proportional Response — Optional damped spool designs for smooth transitions

Detailed Application Scenarios

1. Injection Molding Machines

• Function: Controls mold clamping cylinder movement and injection unit positioning

• Benefit: Precise timing ensures consistent part quality and cycle time optimization

• Typical Setup: 4WE6 valves manage core pull, ejector, and mold open/close circuits

2. Metal Forming & Press Machinery

• Function: Directs hydraulic press ram movement for stamping, bending, and deep drawing operations

• Benefit: Reliable switching under high-pressure conditions ensures operator safety and production consistency

• Configuration: Often used in tandem with accumulator circuits for rapid approach and pressing speeds

3. Mobile Hydraulic Equipment

• Applications:

  • Excavators: Controls boom, arm, and bucket cylinder operations

  • Wheel Loaders: Manages lift arm and bucket tilt functions

  • Aerial Work Platforms: Controls platform elevation and leveling

• Advantage: Compact size fits space-constrained mobile equipment; robust construction withstands vibration and temperature extremes

4. Material Handling Systems

• Function: Powers conveyor positioning, lifting mechanisms, and sorting gates

• Integration: Easily interfaces with PLC control systems for automated warehouse operations

• Reliability: High switching frequency capability (up to 15,000 cycles/hour) supports continuous operation

5. Machine Tool Hydraulics

• Applications:

  • CNC machine tool changers

  • Workpiece clamping systems

  • Tailstock positioning

• Precision: Fast response time (< 30 ms) ensures accurate positioning in automated machining cycles

6. Renewable Energy Systems

• Wind Turbines: Pitch control hydraulic circuits for blade angle adjustment

• Solar Tracking: Hydraulic positioning systems for photovoltaic panel orientation

Technical Advantages

• Wet Pin Solenoid Design: Ensures quiet operation and extended coil life by dissipating heat through hydraulic fluid

• Hardened Spool & Sleeve: Precision-ground components provide minimal leakage (< 5 drops/min) and long service life

• IP65 Protection: Solenoid enclosures resist dust and water ingress for harsh industrial environments

• Modular Design: Easy maintenance with replaceable coils and service kits; minimal downtime for repairs

Installation & Maintenance Notes

• Filtration Requirement: Maintain system cleanliness to ISO 4406 20/18/15 or better to ensure spool longevity

• Mounting Orientation: Can be mounted in any position; solenoids preferably vertical for optimal heat dissipation

• Electrical Connection: DIN 43650 connector standard; LED indicators optional for power status monitoring
