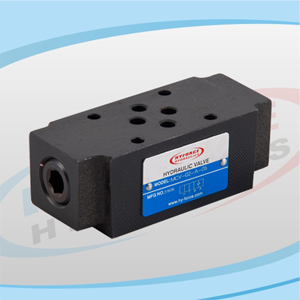

MCV Series Modular Check Valves

MCV series modular check valves allow free flow in one direction and block flow in the counter direction.
Availability:
Quantity:
  • MCV-02-A-05, MCV-03-A-05, MCV-04-A-05, MCV-06-A-05, MCV-02-B-05, MCV-03-B-05, MCV-04-B-05, MCV-06-B-05, MCV-02-W-05, MCV-03-W-05, MCV-04-W-05, MCV-06-W-05, MCV-02-P-05, MCV-03-P-05, MCV-04-P-05, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • B5-B6

Overview

The MCV Series Modular Check Valve is a precision-engineered hydraulic component designed to provide reliable unidirectional flow control in compact, space-efficient hydraulic systems. Available in two standardized sizes (MCV-02 and MCV-03), this valve ensures fluid flows freely in one direction while preventing any reverse flow, protecting system integrity and maintaining operational efficiency. The modular sandwich plate design eliminates external plumbing, enabling direct integration into stacked valve assemblies for streamlined hydraulic circuit construction.

Key Features

  • Modular Sandwich Construction: Standardized CETOP mounting patterns (NG6 for MCV-02, NG10 for MCV-03) allow direct stacking between directional valves and subplates

  • Compact Rectangular Body: Space-efficient design with precision-machined mounting surfaces ensures leak-free integration

  • Spring-Loaded Poppet Design: Precision-guided poppet with optimized spring force ensures reliable sealing and minimal cracking pressure

  • Minimal Pressure Drop: Streamlined internal flow geometry maximizes system efficiency with low flow resistance in the permitted direction

  • High-Quality Materials: Hardened steel poppet and precision-machined valve body ensure long service life in demanding industrial environments

  • Corrosion-Resistant Finish: Phosphate coating or black oxide surface treatment provides protection in harsh operating conditions

  • Visual Circuit Identification: Standardized hydraulic symbols cast into valve body indicate flow direction for easy installation verification

  • Multiple Cracking Pressure Options: Available with various spring ratings to suit specific application requirements (standard 0.5 bar, optional higher ratings)

Primary Functions

  1. Unidirectional Flow Control: Permits free fluid passage in the forward direction with minimal pressure loss

  2. Reverse Flow Prevention: Automatically seals against backflow to prevent system damage and maintain circuit integrity

  3. System Isolation: Isolates hydraulic circuits or components to prevent pressure loss and cross-contamination between system branches

  4. Pump Protection: Prevents reverse rotation and damage to hydraulic pumps when systems are shut down

  5. Load Position Maintenance: Assists in maintaining cylinder or motor position by preventing fluid return flow

  6. System Simplification: Reduces need for complex external piping and additional valve components

Typical Applications & Usage Scenarios

Industrial Manufacturing Equipment

  • Machine Tool Hydraulic Systems: Installed in coolant and lubrication circuits to maintain flow direction; prevents backflow that could contaminate clean fluid supplies or damage precision components. Essential for CNC machine tool chip conveyor systems and coolant circulation loops.

  • Hydraulic Power Units: Protects pumps from reverse flow when multiple pumps operate in parallel or when systems are shut down; maintains prime in suction lines and prevents reservoir contamination.

  • Automated Assembly Lines: Ensures sequential operation of pneumatic-hydraulic hybrid systems; prevents back pressure interference between parallel work stations.

  • Press Brake & Shear Equipment: Maintains directional flow in sequencing circuits; ensures proper timing of clamping and cutting operations.

  • Injection Molding Auxiliary Equipment: Controls flow direction in mold temperature control units and hydraulic core pull circuits.

Mobile & Construction Machinery

  • Compact Excavators & Mini Skid Steers: MCV-02 size ideal for auxiliary hydraulic circuits controlling quick-couplers, thumbs, and attachments; prevents unintended attachment movement when main controls are neutral.

  • Agricultural Tractor Hydraulics: Controls flow direction in three-point hitch circuits and remote hydraulic outlets; prevents implement drift when tractor hydraulics are disengaged.

  • Utility Vehicles & Golf Course Equipment: Ensures proper operation of hydraulic lift gates, mower decks, and snow removal attachments; prevents system backflow during transport.

  • Material Handling Attachments: Controls fork positioners, side shifters, and paper roll clamps; maintains attachment position during vehicle operation.

Material Handling & Logistics

  • Conveyor System Hydraulics: Maintains directional flow in drive motors and tensioning cylinders; prevents reverse flow that could cause conveyor roll-back or system damage.

  • Automated Guided Vehicles (AGVs): Compact MCV-02 size perfect for space-constrained AGV hydraulic circuits; ensures reliable operation of lift and steering systems.

  • Packaging Machinery: Controls flow in case erectors, palletizers, and stretch wrapping equipment; ensures precise timing of hydraulic actuators.

  • Warehouse Dock Equipment: Maintains flow direction in dock leveler and dock plate hydraulic systems; prevents sudden collapse due to reverse flow.

Energy & Environmental Systems

  • Wind Turbine Hydraulic Systems: Controls yaw brake release circuits and blade pitch systems; ensures proper sequencing of hydraulic functions in nacelle systems.

  • Solar Tracking Systems: Maintains directional flow in hydraulic actuators positioning solar panels; prevents backflow that could compromise tracking accuracy.

  • Water Treatment Equipment: Controls chemical dosing pumps and filtration system hydraulics; prevents contamination of clean water supplies.

  • HVAC & Refrigeration: Ensures proper flow direction in large commercial chiller and heat pump hydraulic circuits.

Testing & Laboratory Equipment

  • Hydraulic Test Stands: Isolates test circuits to prevent cross-contamination; maintains system integrity during multi-parameter testing operations.

  • Material Testing Machines: Controls flow direction in specimen gripping and loading systems; ensures accurate force application during tensile and compression testing.

  • Fluid Power Training Equipment: Essential teaching component for demonstrating basic check valve principles in educational hydraulic circuits.

Marine & Special Applications

  • Recreational Boat Hydraulics: Controls trim tab systems, hatch lifts, and anchor windlasses; prevents system backflow in marine environments.

  • Amusement Ride Equipment: Ensures safe operation of hydraulic actuators in theme park attractions; prevents unintended motion due to reverse flow.

  • Stage & Theater Equipment: Controls hydraulic scenery movement and lifting platforms; maintains safety in entertainment venue applications.

  • Medical & Dental Equipment: Compact MCV-02 size suitable for hydraulic patient positioning tables and dental chair mechanisms.

Technical Advantages

The MCV Series delivers significant benefits in hydraulic system design:

  • Space Efficiency: Modular design eliminates external piping and mounting brackets, reducing overall system footprint by up to 60% compared to inline valve installations

  • Installation Speed: Sandwich mounting enables rapid assembly; valves can be added or replaced without disturbing existing hydraulic connections

  • Leak Reduction: Integral design minimizes potential leak points compared to threaded or flanged inline valve connections

  • System Flexibility: Can be combined with other modular valves (flow controls, relief valves, solenoid valves) to create customized integrated circuits

  • Cost Effectiveness: Standardized design reduces inventory requirements and enables economies of scale in production

  • Maintenance Efficiency: Individual valve modules can be replaced without system disassembly, minimizing downtime

  • Interchangeability: Conformance to international standards ensures compatibility with major hydraulic component manufacturers

Operating Principle

The MCV valve operates on a simple yet effective mechanical principle:

Forward Flow: When fluid pressure at the inlet port exceeds the combined force of the light closing spring and any back pressure at the outlet port, the poppet lifts from its seat. This opens the flow path, allowing fluid to pass through with minimal restriction. The streamlined poppet design ensures turbulent-free flow for efficient system operation.

Reverse Flow Blocking: When pressure at the outlet port exceeds inlet pressure (or when inlet pressure drops), the poppet returns to its seat under spring force and pressure differential. The precision-machined metal-to-metal seal prevents any significant reverse flow, maintaining system isolation and protecting upstream components.

Cracking Pressure: The initial pressure required to open the valve (typically 0.35 bar for standard springs) ensures the valve remains closed under static conditions and low-pressure fluctuations, while allowing easy opening during normal system operation.

Size Selection Guide

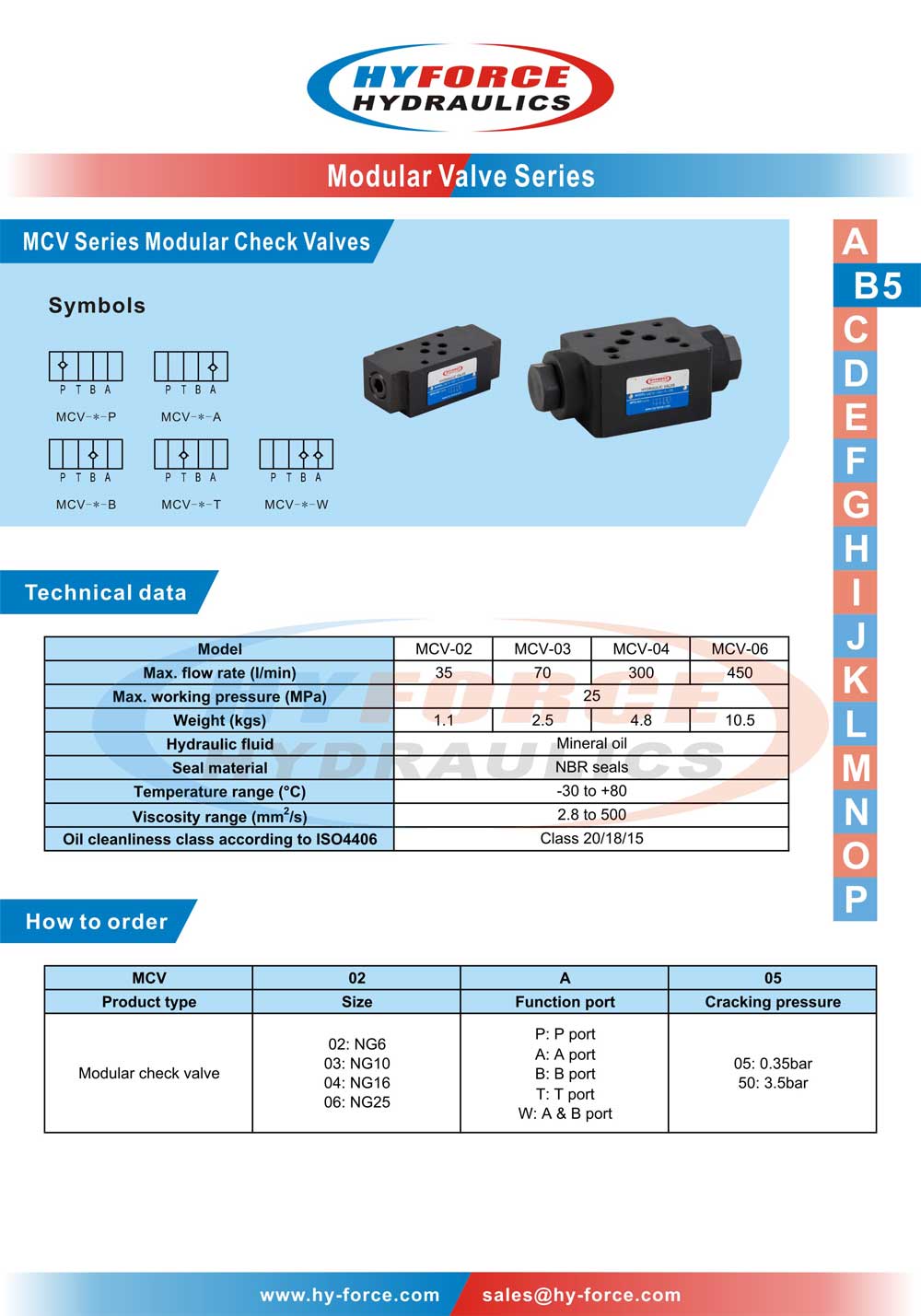

Model

Mounting Standard

Max Flow

Typical Applications

MCV-02

NG6 / CETOP 03

35 L/min (9.2 GPM)

Compact mobile equipment, machine tool auxiliaries, test equipment, AGVs, medical equipment

MCV-03

NG10 / CETOP 05

70 L/min (18.5 GPM)

General industrial machinery, medium mobile equipment, power units, material handling

Installation & Configuration Guidelines

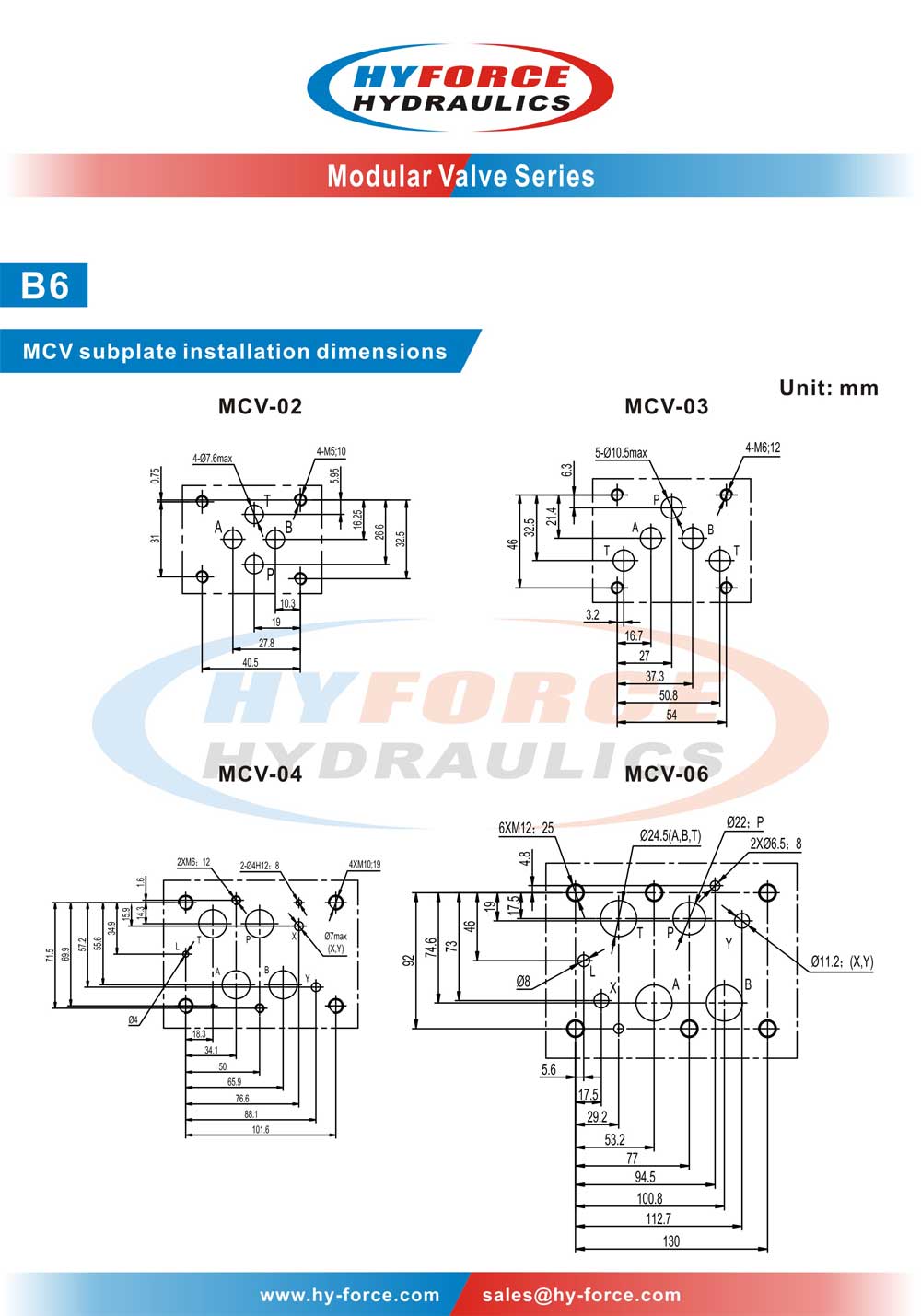

  • Mounting Orientation: Install with valve mounting surfaces properly aligned to subplate using standard mounting bolts; valve may be mounted in any orientation

  • Flow Direction Verification: Confirm proper orientation using cast hydraulic symbols on valve body; arrow indicates permitted flow direction

  • Port Identification: Standard port configuration - inlet (upstream) and outlet (downstream) ports aligned with directional valve ports when stacked

  • Torque Specifications:

    • MCV-02: 8-12 Nm mounting bolt torque

    • MCV-03: 15-25 Nm mounting bolt torque

  • O-Ring Seals: Ensure proper O-ring installation in mounting surface grooves; replace if damaged or compressed

  • System Filtration: Maintain ISO 4406 18/16/13 cleanliness level or better to ensure long-term poppet sealing reliability

  • Pressure Considerations: Select appropriate cracking pressure rating based on system operating pressures and response requirements

Model Code Interpretation (Example: MCV-02-A-05)

  • MCV: Modular Check Valve

  • 02: Nominal size NG6 / CETOP 03 (02 = NG6, 03 = NG10)

  • A: Port configuration and body style code

  • 05: Spring/cracking pressure code (05 = 0.35 bar standard, other codes for higher ratings)

Performance Specifications

表格

Parameter

MCV-02

MCV-03

Mounting Standard

NG6 / CETOP 03

NG10 / CETOP 05

Maximum Operating Pressure

315 bar (4,568 psi)

315 bar (4,568 psi)

Maximum Flow Rate

35 L/min (9.2 GPM)

70 L/min (18.5 GPM)

Cracking Pressure (Standard)

0.35 bar (5.2 psi)

0.35 bar (5.2 psi)

Optional Cracking Pressures

0.35 bar, 3.5 bar

0.35 bar, 3.5 bar

Max Reverse Leakage

<5 drops/min at max pressure

<5 drops/min at max pressure

Fluid Temperature Range

-20°C to +80°C (-4°F to +176°F)

-20°C to +80°C (-4°F to +176°F)

Viscosity Range

2.8-380 cSt

2.8-380 cSt

Fluid Compatibility

Mineral oils, water-glycol, phosphate ester (specify seal material)

Mineral oils, water-glycol, phosphate ester (specify seal material)

Weight (approx.)

1.1 kg

2.5 kg

System Design Recommendations

For optimal MCV series integration:

  • Sizing: Select valve size based on maximum anticipated flow velocity (recommended <6 m/s for optimal efficiency and noise reduction)

  • Cracking Pressure Selection: Use standard 0.35 bar springs for most applications; select higher cracking pressures only when necessary to prevent flow in low-pressure conditions

  • Combination Circuits: Consider stacking with modular flow controls for combined check and flow regulation functions

  • Pilot-Operated Needs: If reverse flow capability is required, specify MPCV series pilot-operated check valves instead

  • Thermal Considerations: In systems with significant temperature variations, ensure fluid viscosity remains within specified range for reliable poppet operation

  • Redundancy: For critical safety applications, consider parallel installation of check valves or combination with other safety components

Comparison with Pilot-Operated Alternatives

The MCV series provides pure check valve functionality without pilot operation:

  • Advantages over MPCV: Simpler design, lower cost, no pilot line connections required, faster response in forward direction

  • Limitations compared to MPCV: Cannot permit controlled reverse flow; if reverse flow is ever required, MPCV series must be specified instead
