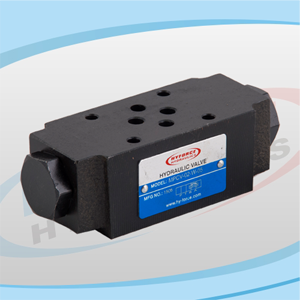

MPCV Series Modular Pilot Operated Check Valves

MPCV series modular pilot operated check valves are pilot operated style sandwich valves. These valves used to close one or two oil ports.
Availability:
Quantity:
  • MPCV-01-A-05, MPCV-02-A-05, MPCV-03-A-05, MPCV-04-A-05, MPCV-06-A-05, MPCV-01-B-05, MPCV-02-B-05, MPCV-03-B-05, MPCV-04-B-05, MPCV-06-B-05, MPCV-01-W-05, MPCV-01-W-05, MPCV-02-W-05, MPCV-03-W-05, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • B3-B4

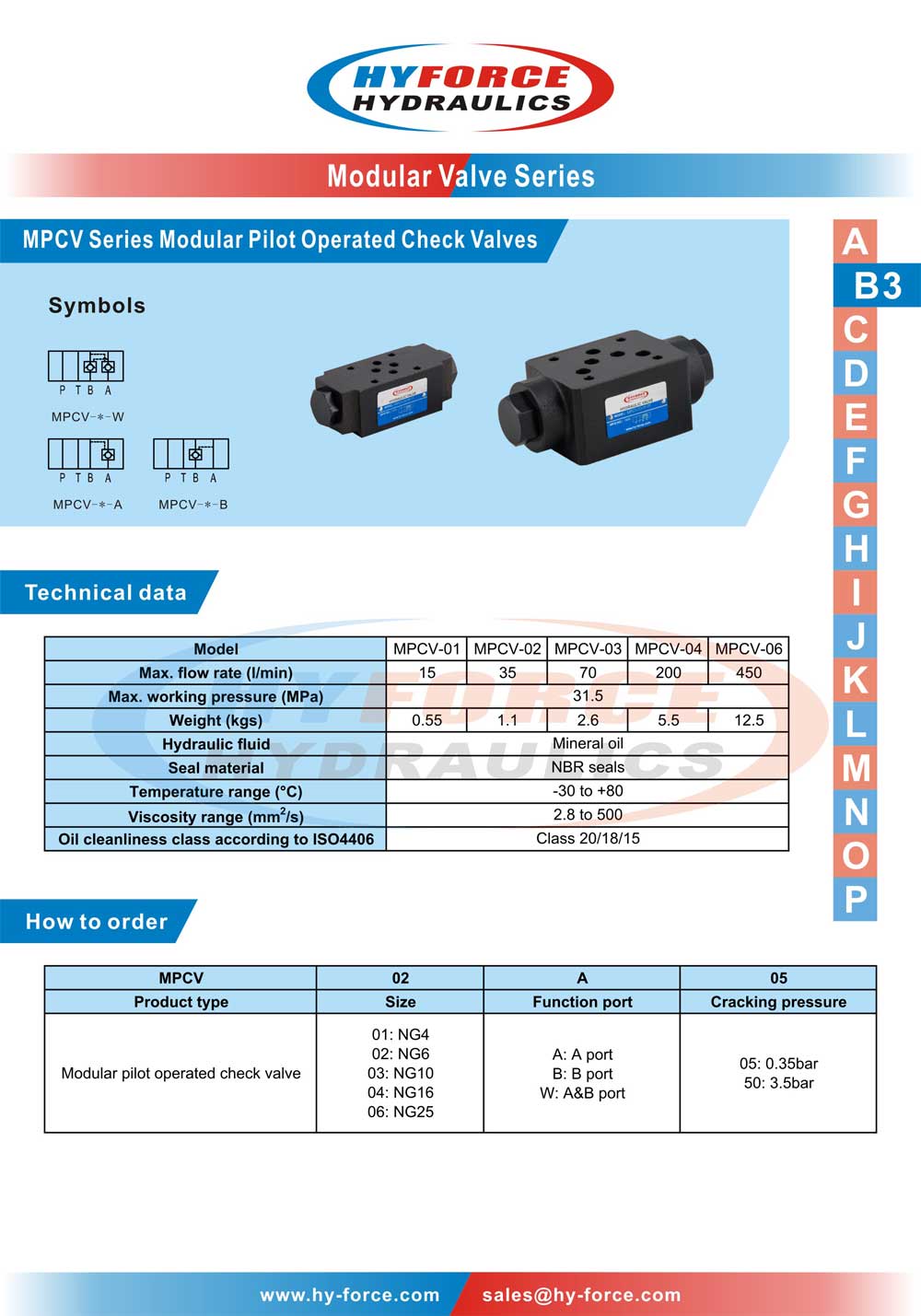

Overview

The MPCV Series Modular Pilot-Operated Check Valve is a premium hydraulic control component for demanding load-holding and directional flow control applications. This versatile valve series combines the positive sealing characteristics of a traditional check valve with pilot-operated reverse flow capability, all within a compact modular sandwich plate design. Available in multiple sizes (MPCV-02, MPCV-03, MPCV-04, and MPCV-06), the MPCV series accommodates a wide range of flow requirements from compact mobile equipment to heavy-duty industrial machinery, providing reliable performance across diverse hydraulic system architectures.

Key Features

  • Comprehensive Size Range: Four standardized sizes (02/03/04/06) covering NG6 through NG25 mounting standards to match various system flow requirements

  • Modular Sandwich Construction: Standardized CETOP/NFPA mounting patterns enable direct stacking between directional control valves and subplates, eliminating external plumbing

  • Dual-Function Design: Combines free forward flow with pilot-operated reverse flow capability in a single compact unit

  • Precision Poppet Mechanism: Hardened steel poppet and seat assembly ensures zero-leakage load holding and long service life

  • Flexible Pilot Options: Available with internal pilot (from opposite port), external pilot (remote pressure source), or dual-pilot configurations

  • High-Pressure Rating: Engineered for continuous operation at pressures up to 315 bar (4,568 psi) with excellent reliability

  • Durable Surface Protection: Phosphate conversion coating or black oxide finish provides superior corrosion resistance in industrial environments

  • Visual Circuit Identification: Standardized hydraulic symbols and flow direction markings cast into valve body for easy installation verification

Primary Functions

  1. Positive Load Holding: Maintains hydraulic cylinders and motors in precise position with minimal internal leakage, preventing load drift during extended holding periods

  2. Free Forward Flow: Permits unrestricted fluid passage in the working direction with minimal pressure drop for efficient system operation

  3. Pilot-Operated Release: Enables controlled reverse flow when pilot pressure is applied, allowing cylinder retraction or motor reversal on command

  4. System Isolation: Isolates individual circuit branches to prevent pressure loss and maintain system integrity during multi-function operation

  5. Emergency Safety Function: Prevents uncontrolled load descent in the event of hydraulic line rupture or pump failure

  6. Thermal Relief Capability: Certain configurations allow for pressure relief due to thermal expansion of trapped fluid

Typical Applications & Usage Scenarios

Industrial Manufacturing Equipment

  • CNC Machine Tools: Maintains workholding clamp force during precision machining operations; pilot release enables rapid workpiece changeover. Essential for vertical machining centers where spindle heads must remain stationary during tool changes.

  • Injection Molding Systems: Locks mold clamping cylinders in closed position during high-pressure plastic injection; enables smooth, controlled mold opening for part ejection and mold change procedures.

  • Hydraulic Presses & Forming Equipment: Holds press ram in elevated position during material loading; provides controlled descent for stamping, bending, and deep-drawing operations with precise pressure control.

  • Die Casting Machinery: Maintains die closing force during molten metal injection under high pressure; enables synchronized die opening for automated part removal.

  • Metal Rolling Mills: Controls work roll positioning and backup roll balance cylinders; maintains precise gap settings during continuous rolling operations.

Mobile & Construction Machinery

  • Hydraulic Excavators: Locks boom, arm, and bucket cylinders during digging and lifting operations; pilot-operated release enables smooth, coordinated multi-axis movement for precision grading and material placement.

  • Wheel Loaders & Backhoes: Maintains lift arm and bucket position during transport and material handling; provides controlled lowering for precise dumping and loading operations.

  • Aerial Work Platforms: Critical safety component for scissor lifts and boom lifts, holding platform elevation during maintenance operations; enables smooth, controlled descent for worker safety.

  • Concrete Pump Trucks: Locks placing boom sections during concrete pumping; allows coordinated boom movement for precise concrete placement at construction sites.

  • Crane & Lifting Equipment: Maintains load position during lifting and slewing operations; provides controlled load lowering through pilot-operated release circuits.

Material Handling & Logistics Automation

  • Automated Storage & Retrieval Systems (AS/RS): Holds stacker crane lifting mechanisms at precise vertical positions; enables smooth acceleration and deceleration for high-speed storage operations.

  • Forklift & Pallet Truck Hydraulics: Controls mast lift and tilt functions; maintains fork elevation during load transport with fail-safe reliability.

  • Conveyor System Tensioners: Maintains belt tensioning cylinder position; allows adjustment via pilot control for belt tracking and maintenance.

  • Robotic Handling Systems: Locks end-effector positioning cylinders during part transfer; enables precise release at placement points in automated assembly lines.

Agricultural & Forestry Equipment

  • Tractor Hydraulic Lift Systems: Controls three-point hitch positioning for implements (plows, harrows, planters); maintains implement height during field operations.

  • Combine Harvesters: Locks header height adjustment cylinders; maintains reel positioning during crop harvesting operations.

  • Forestry Machinery: Controls harvester head positioning and grapple functions; maintains tree gripping force during cutting and delimbing operations.

  • Bale Handling Equipment: Locks grapple and wrapper positioning cylinders; provides controlled release for hay and straw bale placement.

Energy & Infrastructure Applications

  • Wind Turbine Hydraulic Systems: Locks blade pitch adjustment cylinders for optimal aerodynamic performance; maintains yaw brake engagement for turbine orientation control.

  • Hydraulic Dam & Gate Control: Holds floodgate and sluice gate positioning cylinders; enables controlled opening/closing for water flow management and flood control.

  • Ship & Marine Equipment: Controls deck crane operations, hatch covers, and mooring winches; provides reliable load holding in corrosive marine environments.

  • Oil & Gas Equipment: Controls blowout preventer (BOP) systems, wellhead equipment, and offshore platform machinery; ensures fail-safe operation in critical extraction applications.

Specialized Industrial Processes

  • Paper & Pulp Processing: Controls calendar roll positioning and dancer roll tensioning; maintains precise web tension during high-speed paper production.

  • Textile Manufacturing: Locks loom and weaving machine components; maintains yarn tension for consistent fabric quality.

  • Rubber & Plastic Processing: Controls extruder head positioning and mold closing units; maintains processing pressure during material forming.

  • Glass & Ceramics Production: Controls pressing and forming equipment; maintains precise mold positioning during high-temperature operations.

Technical Advantages

The MPCV Series delivers exceptional value in modern hydraulic system design:

  • Zero-Leakage Performance: Precision-lapped poppet and seat surfaces ensure minimal internal leakage (typically less than 5 drops/minute), maintaining load position for extended periods without drift

  • Modular Integration Benefits: Sandwich plate design eliminates external piping, reducing installation time by up to 70% compared to inline valve configurations

  • System Flexibility: Can be combined with other modular valves (flow controls, relief valves, sequence valves) to create sophisticated integrated hydraulic circuits

  • Pressure Efficiency: Optimized internal flow paths minimize pressure drop during forward flow, reducing energy consumption and heat generation

  • Rapid Response: Lightweight poppet design ensures quick response to pilot signals, enabling dynamic system performance for high-speed automation

  • Maintenance Efficiency: Individual valve modules can be replaced without disturbing adjacent components, minimizing system downtime

  • Standardization Benefits: Conformance to international mounting standards ensures interchangeability and global sourcing flexibility

Operating Principle

The MPCV valve functions as a hydraulically-controlled check valve with dual operating modes:

Forward Flow Mode: When pressure is applied to the inlet port (typically Port A), fluid lifts the main poppet against light spring force, allowing free flow to the outlet port (Port B). This direction provides minimal flow resistance for efficient cylinder extension or motor operation.

Load-Holding Mode: When forward flow ceases, the poppet returns to its seat under spring force and any back pressure from the load. The precision-machined metal-to-metal seal prevents reverse flow, maintaining the load in position with near-zero leakage.

Pilot-Operated Reverse Flow Mode: When pilot pressure is applied to the pilot piston (via internal connection from the opposite cylinder port or external pilot line), the mechanical force lifts the main poppet from its seat. This opens the flow path from Port B to Port A, allowing controlled reverse flow for cylinder retraction or motor reversal. The pilot area ratio (typically 3:1 to 5:1) determines the pressure relationship required for valve opening.

Size Selection Guide

Model

Mounting Standard

Max Flow

Typical Applications

MPCV-02

NG6 / CETOP 03

35 L/min (9.2 GPM)

Compact mobile equipment, small machine tools, test equipment

MPCV-03

NG10 / CETOP 05

70 L/min (18.5 GPM)

General industrial machinery, medium excavators, injection molding

MPCV-04

NG16 / CETOP 07

200 L/min (52.8 GPM)

Heavy industrial presses, large material handling equipment

MPCV-06

NG25 / CETOP 08

450 L/min (118.9 GPM)

Heavy construction machinery, large presses, offshore equipment

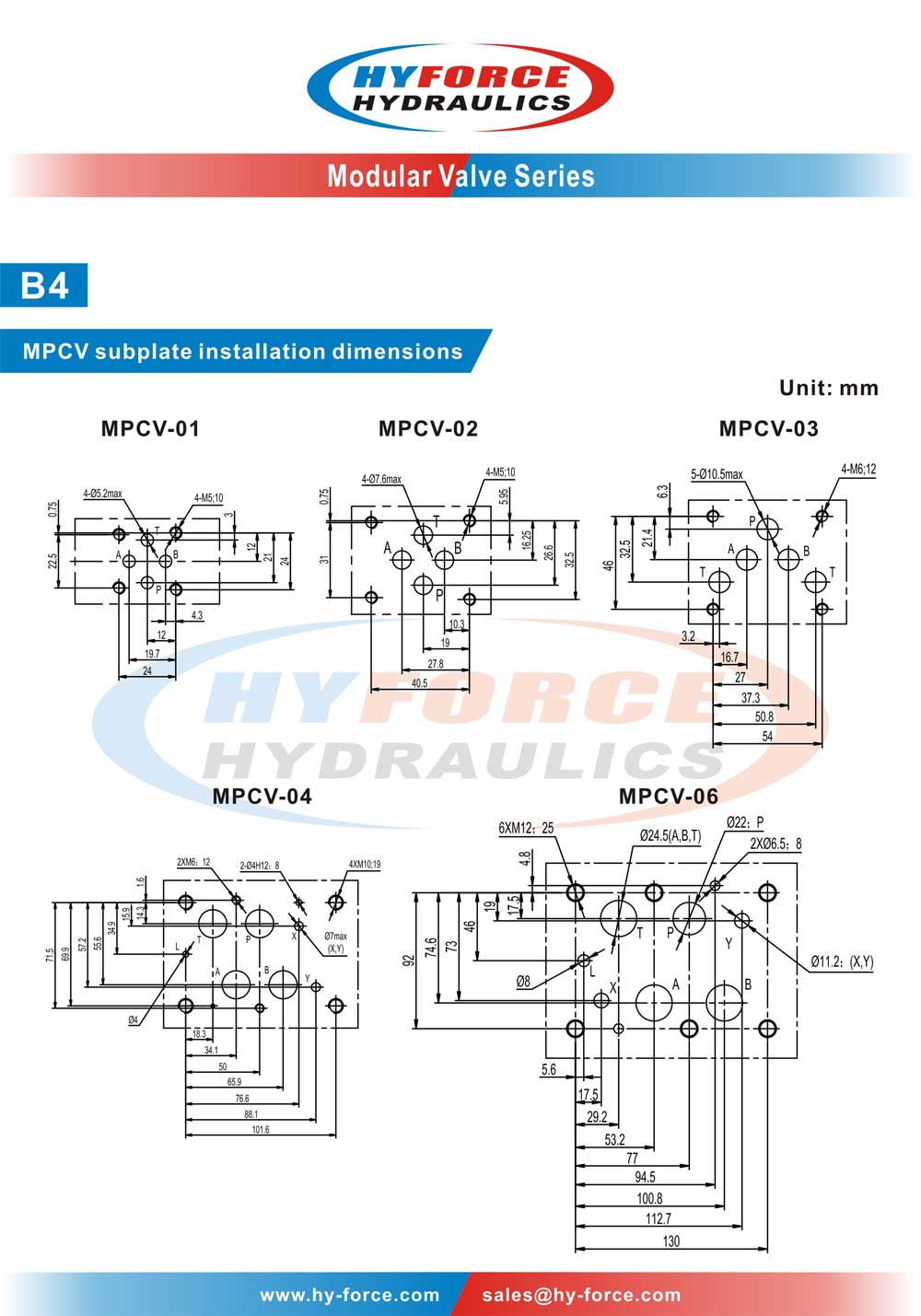

Installation & Configuration Guidelines

  • Mounting Orientation: Install with valve mounting surfaces properly aligned to subplate; standard bolts and O-ring seals provided

  • Port Identification: Standard port configuration - A and B (main flow ports), X (external pilot port where applicable)

  • Pilot Configuration Selection:

    • Internal Pilot (Standard): Uses pressure from opposite cylinder port; suitable for most applications with area ratios up to 2:1

    • External Pilot: Remote pressure source; recommended for large area ratio cylinders or when independent pilot control is required

    • Dual Pilot: Combination internal/external for complex synchronization requirements

  • Flow Direction Verification: Confirm proper orientation using cast hydraulic symbols on valve body; incorrect installation will prevent proper circuit operation

  • Torque Specifications: Follow manufacturer specifications for mounting bolt torque (typically 8-12 Nm for NG6, 15-25 Nm for NG10) to ensure proper sealing without body distortion

  • Fluid Cleanliness: Maintain ISO 4406 18/16/13 or better cleanliness level; install high-quality filtration upstream of valve assembly

Model Code Interpretation (Example: MPCV-03-W-05)

  • MPCV: Modular Pilot-Operated Check Valve

  • 03: Nominal size NG10 / CETOP 05

  • W: Body material/configuration code

  • 05: Cracking pressure 0.35 bar

Performance Specifications

Parameter

MPCV-02

MPCV-03

MPCV-04

MPCV-06

Mounting Standard

NG6 / CETOP 03

NG10 / CETOP 05

NG16 / CETOP 07

NG25 / CETOP 08

Max Operating Pressure

315 bar

315 bar

315 bar

315 bar

Max Flow Rate

35 L/min

70 L/min

200 L/min

450 L/min

Pilot Pressure Range

5-315 bar

5-315 bar

5-315 bar

5-315 bar

Cracking Pressure

0.35 bar (standard)

0.35 bar (standard)

0.35 bar (standard)

0.35 bar (standard)

Internal Leakage

<5 drops/min

<5 drops/min

<10 drops/min

<10 drops/min

Fluid Temperature

-20°C to +80°C

-20°C to +80°C

-20°C to +80°C

-20°C to +80°C

Viscosity Range

2.8-380 cSt

2.8-380 cSt

2.8-380 cSt

2.8-380 cSt

Weight (approx.)

1.2 kg

2.5 kg

4.8 kg

8.5 kg

System Design Recommendations

For optimal MPCV series performance:

  • Sizing: Select valve size based on maximum anticipated flow, not average operating conditions; oversizing improves response but increases cost

  • Pilot Ratio Consideration: For cylinders with rod/bore area ratios exceeding 2:1, consider external pilot configuration or decompression features to ensure reliable opening

  • Decompression Requirements: In high-pressure, large-volume applications, specify decompression poppet options to prevent shock during pilot opening

  • Combination Circuits: Use in conjunction with modular flow controls for precise motion control, or with proportional valves for smooth acceleration/deceleration profiles

  • Redundancy: For critical safety applications (aerial platforms, cranes), consider dual-valve configurations or counterbalance valve alternatives

  • Thermal Management: In closed-center systems with long holding periods, ensure adequate thermal relief provisions to prevent pressure buildup from fluid heating
