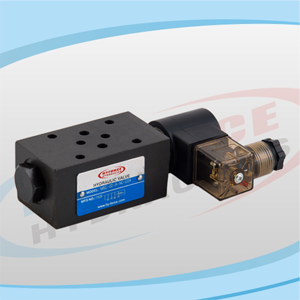

MSC Series Modular Solenoid Operated Check Valves

Overview

The MSC Series Modular Solenoid-Controlled Check Valve is an advanced electro-hydraulic control component combining the reliable load-holding capabilities of a pilot-operated check valve with the precision and convenience of electrical control. Available in two standardized sizes (MSC-02 and MSC-03), this innovative valve provides positive sealing in the closed position while allowing remote, electrically-actuated release of reverse flow when the solenoid is energized. The modular sandwich plate design enables seamless integration into modern hydraulic systems requiring automated or remotely-controlled load management.

Key Features

• Electro-Hydraulic Operation: Integral solenoid pilot control eliminates the need for external pilot lines, enabling clean, simplified circuit design

• Modular Sandwich Construction: Standardized CETOP mounting patterns (NG6 for MSC-02, NG10 for MSC-03) allow direct stacking in valve assemblies

• High-Performance Solenoid: Robust wet-pin solenoid design with IP65 protection rating ensures reliable operation in industrial environments

• Multiple Voltage Options: Available in standard industrial voltages (12V DC, 24V DC, 110V AC, 220V AC) to match control system requirements

• Manual Override Option: Integrated manual override button allows emergency or maintenance operation without electrical power

• Precision Poppet Mechanism: Hardened steel poppet and seat assembly ensures zero-leakage load holding and long service life

• Visual Position Indication: Transparent solenoid connector housing with LED indicator provides clear operational status visibility

• Compact Rectangular Body: Space-efficient design with precision-machined mounting surfaces ensures leak-free modular integration

• Durable Surface Protection: Phosphate coating or black oxide finish provides corrosion resistance in demanding industrial applications

Primary Functions

1. Positive Load Holding: Maintains hydraulic cylinders and motors in precise position with near-zero leakage when solenoid is de-energized

2. Electrically-Controlled Release: Permits controlled reverse flow when solenoid is energized, enabling remote or automated load lowering

3. System Isolation: Isolates circuit branches to prevent pressure loss and maintain system efficiency during multi-function operation

4. Automated Sequence Control: Enables integration into PLC-controlled hydraulic systems for precise timing and interlocking functions

5. Emergency Safety Function: Maintains load position during power failures or emergency stops (fail-safe holding)

6. Simplified Circuit Design: Eliminates complex external pilot line routing through integral electro-hydraulic operation

Typical Applications & Usage Scenarios

Automated Manufacturing & Industrial Automation

• Automated Assembly Lines: Controls hydraulic clamping and positioning cylinders; PLC energizes solenoid to release workpieces at precise cycle times. Essential for robotic work cells where automated part handling requires synchronized hydraulic release.

• CNC Machine Tool Workholding: Maintains fixture clamping force during machining operations; automatic release commanded by M-code for workpiece changeover. Enables unmanned operation in flexible manufacturing systems.

• Injection Molding Automation: Locks mold clamping during injection; electrically-controlled release enables automated mold opening and part ejection sequences. Integrates with molding machine control systems for synchronized cycle operation.

• Press Brake & Forming Automation: Controls ram positioning and backgauge cylinders; automated release enables rapid setup changes and part removal in lights-out manufacturing environments.

• Packaging & Palletizing Systems: Controls hydraulic grippers and lift mechanisms; solenoid actuation enables precise timing with conveyor and robotic systems.

Material Handling & Logistics Automation

• Automated Storage & Retrieval Systems (AS/RS): Critical component in stacker crane lifting circuits; maintains load position during transport, with electrically-controlled descent for precise rack placement. Enables high-speed, accurate storage operations in automated warehouses.

• Automated Guided Vehicles (AGVs): Controls hydraulic lift and positioning functions; onboard controller energizes solenoid for controlled loading/unloading at designated stations. Fail-safe holding ensures load security during transport.

• Conveyor System Diverters & Stops: Controls hydraulic actuators positioning packages; automated release enables precise sorting and routing in distribution centers.

• Dock Leveler Automation: Controls platform positioning; building management system or vehicle presence sensors trigger solenoid for automatic height adjustment.

Mobile Equipment with Electronic Controls

• Telehandler & Aerial Lift Controls: Integrates with electronic control systems (CAN bus, J1939) for precise platform positioning; joystick or automatic level commands energize solenoid for smooth operator-controlled descent.

• Agricultural Harvesting Equipment: Controls header height and reel positioning; GPS or terrain-following systems automatically adjust via solenoid actuation for optimal crop gathering.

• Construction Equipment with Grade Control: Integrates with laser or GPS grade control systems for automatic blade and bucket positioning; solenoid release enables precise elevation control.

• Utility Truck Hydraulic Systems: Controls aerial bucket and digger derrick operations; remote pendant or wireless controls energize solenoid for smooth, proportional load handling.

Energy & Infrastructure

• Wind Turbine Hydraulic Systems: Controls blade pitch and yaw brake release; turbine controller energizes solenoid for emergency feathering or maintenance positioning. Fail-safe design ensures blade locking during power failures.

• Solar Tracking Systems: Controls hydraulic actuators positioning photovoltaic panels; tracking controller commands solenoid for sun-following operation and stow positioning during high winds.

• Water Treatment & Flood Control: Controls gate and valve positioning in remote or unmanned facilities; SCADA systems remotely operate solenoid for flow management and emergency response.

• Hydroelectric Plant Equipment: Controls wicket gate and bypass valve actuators; plant control system manages solenoid for precise flow regulation and turbine protection.

Testing, Laboratory & Specialized Equipment

• Hydraulic Test Stands: Controls specimen loading and positioning; test software automatically sequences solenoid operation for programmed load profiles and cyclic testing.

• Flight & Vehicle Simulators: Controls motion platform actuators; real-time simulation computer energizes solenoid for precise position control and emergency stop functions.

• Medical & Rehabilitation Equipment: Controls hydraulic patient positioning tables and therapy equipment; therapist controls or pre-programmed sequences operate solenoid for smooth, safe patient handling.

• Theater & Stage Equipment: Controls hydraulic scenery lifts and platform elevators; show control systems synchronize solenoid operation with lighting and sound cues.

Marine & Offshore Applications

• Marine Deck Machinery: Controls winches, cranes, and hatch covers; bridge or remote control systems operate solenoid for precise load handling in maritime operations.

• Offshore Platform Equipment: Controls drilling and production hydraulic systems; platform control network manages solenoid for safe operation in hazardous environments.

• Ship Stabilization Systems: Controls fin stabilizer positioning; ship motion sensors automatically adjust solenoid for roll reduction in rough seas.

Technical Advantages

The MSC Series delivers unique benefits for modern electro-hydraulic systems:

• Simplified System Architecture: Integral solenoid eliminates external pilot lines, reducing installation complexity and potential leak points by up to 40% compared to conventional pilot-operated check valves

• Enhanced Control Precision: Electrical actuation enables precise timing control (millisecond response) impossible with hydraulic pilot circuits

• Remote Operation Capability: Solenoid control enables operation from distant control panels, eliminating need for mechanical linkages or pilot line extensions

• Automation Integration: Direct compatibility with PLC, CNC, and computer control systems enables Industry 4.0 and smart manufacturing implementations

• Fail-Safe Design: De-energized solenoid results in locked position, ensuring load safety during power failures or emergency stops

• Diagnostic Capability: LED indicators and electrical feedback options enable remote monitoring of valve status for predictive maintenance

• Energy Efficiency: Solenoid requires power only during release operation; no continuous power consumption during load holding

• Maintenance Accessibility: Modular design allows rapid valve replacement without system disassembly; electrical connector enables quick disconnect

Operating Principle

The MSC valve operates through a sophisticated electro-hydraulic mechanism:

Load-Holding Mode (Solenoid De-energized): When the solenoid is de-energized, the valve functions as a standard check valve. Fluid flows freely from Port A to Port B, lifting the main poppet. Reverse flow from Port B to Port A is blocked by the poppet seated under spring force and load pressure. The precision-machined metal-to-metal seal ensures minimal leakage, maintaining load position indefinitely.

Release Mode (Solenoid Energized): When the solenoid coil is energized, it actuates an internal pilot piston. This mechanical force lifts the main poppet from its seat, opening the flow path from Port B to Port A. The solenoid force overcomes the combined resistance of the spring and load pressure, allowing controlled reverse flow for cylinder retraction or load lowering. When the solenoid is de-energized, the poppet immediately returns to its seat, stopping flow and holding the new position.

Manual Override: The integrated manual button allows mechanical lifting of the pilot piston without electrical power, enabling maintenance procedures or emergency operation.

Size Selection Guide

Installation & Configuration Guidelines

• Electrical Connection: Standard DIN 43650 Form A connector with transparent housing; ensure proper voltage and polarity for DC versions

• Voltage Specifications: Verify solenoid voltage matches control system (24V DC most common for industrial automation; 12V DC for mobile equipment)

• Mounting Orientation: Install with valve mounting surfaces properly aligned to subplate; solenoid may be mounted in four 90° positions for wiring convenience

• Flow Direction: Confirm proper orientation using cast hydraulic symbols; reverse installation will prevent proper circuit operation

• Manual Override: Located on solenoid end; press and hold for manual release, release to return to automatic operation

• Torque Specifications:

  • MSC-02: 8-12 Nm mounting bolt torque

  • MSC-03: 15-25 Nm mounting bolt torque

• System Filtration: Maintain ISO 4406 18/16/13 cleanliness level to ensure long-term solenoid and poppet reliability

• Surge Protection: Install flyback diodes (DC) or varistors (AC) to protect control system from solenoid switching transients

Model Code Interpretation (Example: MSC-02-A-NG-024)

• MSC: Modular Solenoid-Controlled Check Valve

• 02: Nominal size NG6 / CETOP 03 (02 = NG6, 03 = NG10)

• A: Port configuration and body style code

• NG: Solenoid type and manual override configuration (NG = with manual override)

• 024: Solenoid voltage (024 = 24V DC, 012 = 12V DC, 110 = 110V AC, 220 = 220V AC)

Performance Specifications

表格

System Design Recommendations

For optimal MSC series integration:

• Power Supply Sizing: Ensure power supply capacity accounts for solenoid inrush current; size at 1.5x rated power for stable operation

• Control Signal Quality: Use filtered, regulated DC power for best solenoid performance and longevity; avoid unfiltered rectified AC

• Safety Considerations: Design control logic to de-energize solenoid for load holding; verify fail-safe operation during emergency stops

• Proportional Needs: For smooth load lowering, consider combining with proportional flow controls or use proportional solenoid versions

• Response Timing: Account for 50-60ms response time in high-speed automation sequences; position sensors may be needed for confirmation

• Thermal Management: In high-duty applications, ensure adequate ventilation around solenoid; continuous operation at high ambient temperatures may require derating

• Electrical Noise: Route solenoid cables away from sensitive signal lines; use shielded cables in high-EMI environments
