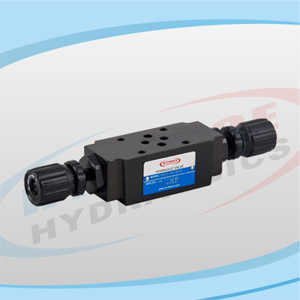

MTCV Series Modular Throttle Check Valves

Overview

The MTCV Series Modular Throttle Check Valve is a dual-function hydraulic flow control component that combines precision speed regulation with unrestricted reverse flow capability in a compact modular design. This sandwich-mounting valve features independent adjustable throttling on both ports (A and B), enabling simultaneous control of actuator extension and retraction speeds from a single valve body. The integral check valves ensure free return flow in both directions when throttling is not required, making the MTCV an efficient solution for bidirectional motion control applications.

Key Functions

表格

Primary Applications

• Injection Molding Machines – Independent control of mold open and close speeds

• Machine Tools – Precise feed and rapid return cycles for slides and tables

• Hydraulic Presses – Controlled approach, pressing, and return speed optimization

• Material Handling Equipment – Smooth acceleration/deceleration in both directions

• Mobile Hydraulic Systems – Cylinder speed management in excavators, loaders, and aerial platforms

• Automated Production Equipment – Synchronized bidirectional motion sequences

Detailed Usage Scenarios

Scenario 1: Injection Molding Machine Mold Control

In high-speed injection molding machines, the mold open and close speeds require different profiles for optimal cycle time and part quality. The MTCV provides:

• Controlled mold closing: One adjustment knob sets the slow, protective speed for final mold engagement to prevent impact damage

• Fast mold opening: The opposite knob configures rapid part ejection while maintaining smooth deceleration at stroke end

• Independent optimization: Technicians can tune each direction separately without affecting the other, accommodating different mold weights and part geometries

This eliminates the need for two separate throttle valves and simplifies the hydraulic manifold design.

Scenario 2: Machine Tool Rapid Traverse & Feed Control

CNC machining centers and grinding machines typically require:

• Slow, precise feed rates during cutting or grinding operations (one direction)

• Fast rapid traverse for positioning between operations (opposite direction)

The MTCV installed at the cylinder or motor port enables:

• Meter-out control on the feed direction for stable speed against varying cutting forces

• Minimal restriction on rapid direction via the check valve bypass for maximum productivity

• Independent fine-tuning of both speeds to match specific machining parameters and surface finish requirements

Scenario 3: Hydraulic Press Speed Profiling

Stamping presses, drawing presses, and coining presses benefit from distinct speed phases in each direction:

表格

The MTCV's dual adjustment capability allows press manufacturers to optimize the complete motion profile from a single modular valve, reducing component count and assembly complexity.

Scenario 4: Mobile Equipment Cylinder Control

In hydraulic excavators and wheel loaders, boom and arm cylinders require different speeds for productivity and safety:

• Boom lowering: Controlled descent via meter-out throttling to prevent gravity-induced runaway

• Boom lifting: Rapid, unrestricted flow for fast cycle times

• Arm crowding: Smooth, powerful motion for digging force

• Arm dumping: Fast retraction for efficient material discharge

The MTCV provides independent speed control for each direction, allowing equipment designers to match hydraulic performance to operator expectations and safety standards.

Scenario 5: Conveyor System Bidirectional Control

Automated pallet conveyors and transfer systems often require:

• Smooth acceleration in the forward direction for product stability

• Controlled deceleration at the end of forward travel

• Different speed profile for reverse operation (return to start position)

• Emergency stop capability with adjustable cushioning

The MTCV enables complete speed profiling in both directions from a single valve installation point, simplifying system commissioning and future speed adjustments.

Scenario 6: Die Casting Machine Ejector & Core Pull

High-pressure die casting machines feature multiple auxiliary cylinders with bidirectional speed requirements:

• Ejector forward: Fast initial stroke, slow final approach to prevent part damage

• Ejector return: Rapid retraction for next cycle

• Core pull A: Controlled extraction to prevent core pin breakage

• Core pull B: Fast insertion for cycle time

Multiple MTCV valves throughout the machine enable independent optimization of each motion sequence, improving part quality and reducing cycle time simultaneously.

Technical Advantages

• Dual Independent Adjustment – Separate control of extension and retraction speeds from one valve body

• Precision Needle Design – Hardened, tapered needles provide sensitive, repeatable flow adjustment

• Bidirectional Check Valves – Free reverse flow in both directions eliminates the need for external bypass circuits

• Visual Position Indicators – Knurled knobs with reference scales enable documented settings and quick field adjustment

• Tamper-Resistant Locking – Locknuts secure settings against vibration-induced drift

• Compact Modular Construction – One MTCV replaces two single throttle check valves, saving 50% stack height

• Flexible Mounting – Can be configured for meter-in or meter-out control on either or both ports

• Low Pressure Drop – Check valve cracking pressure optimized for minimal energy loss

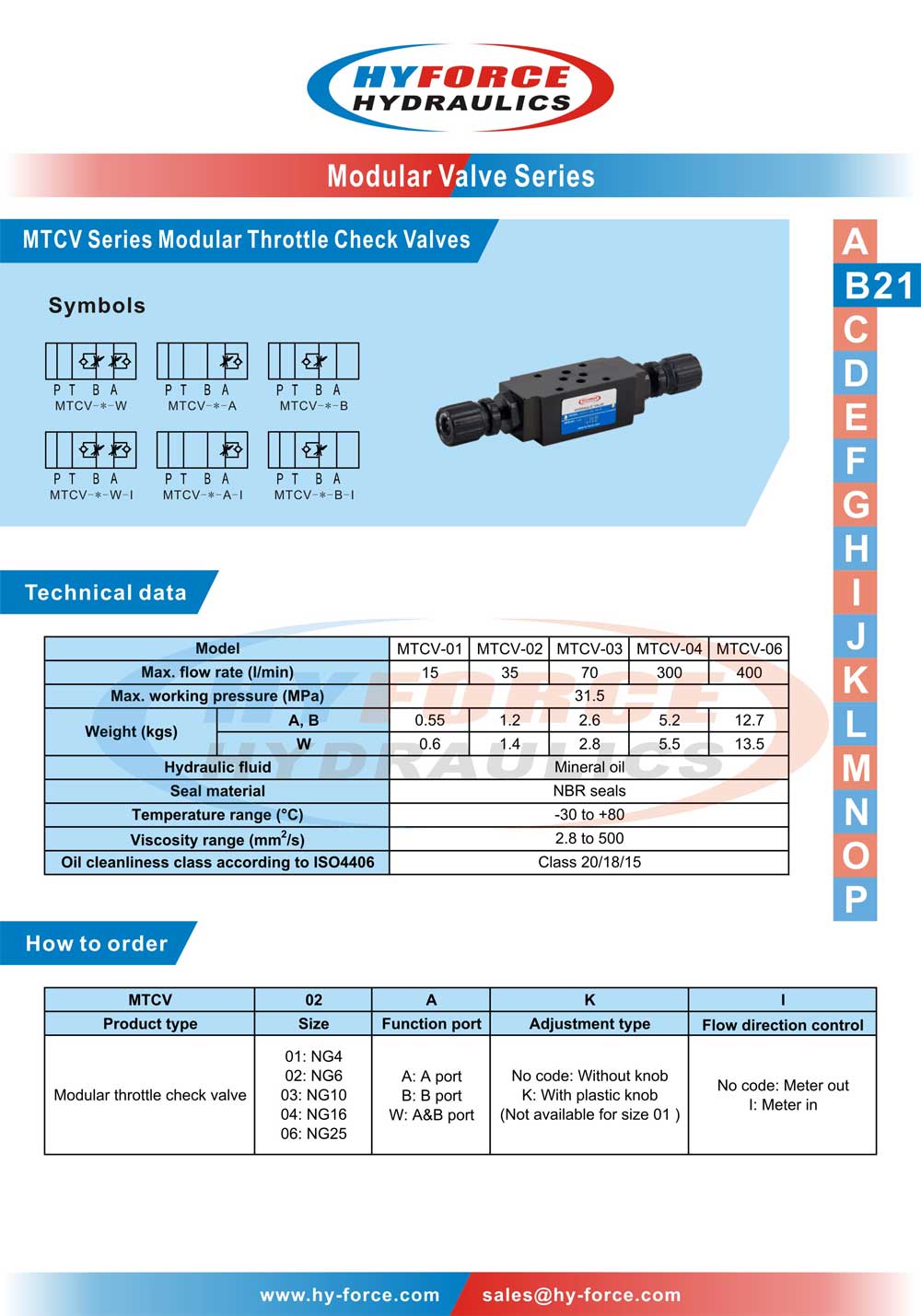

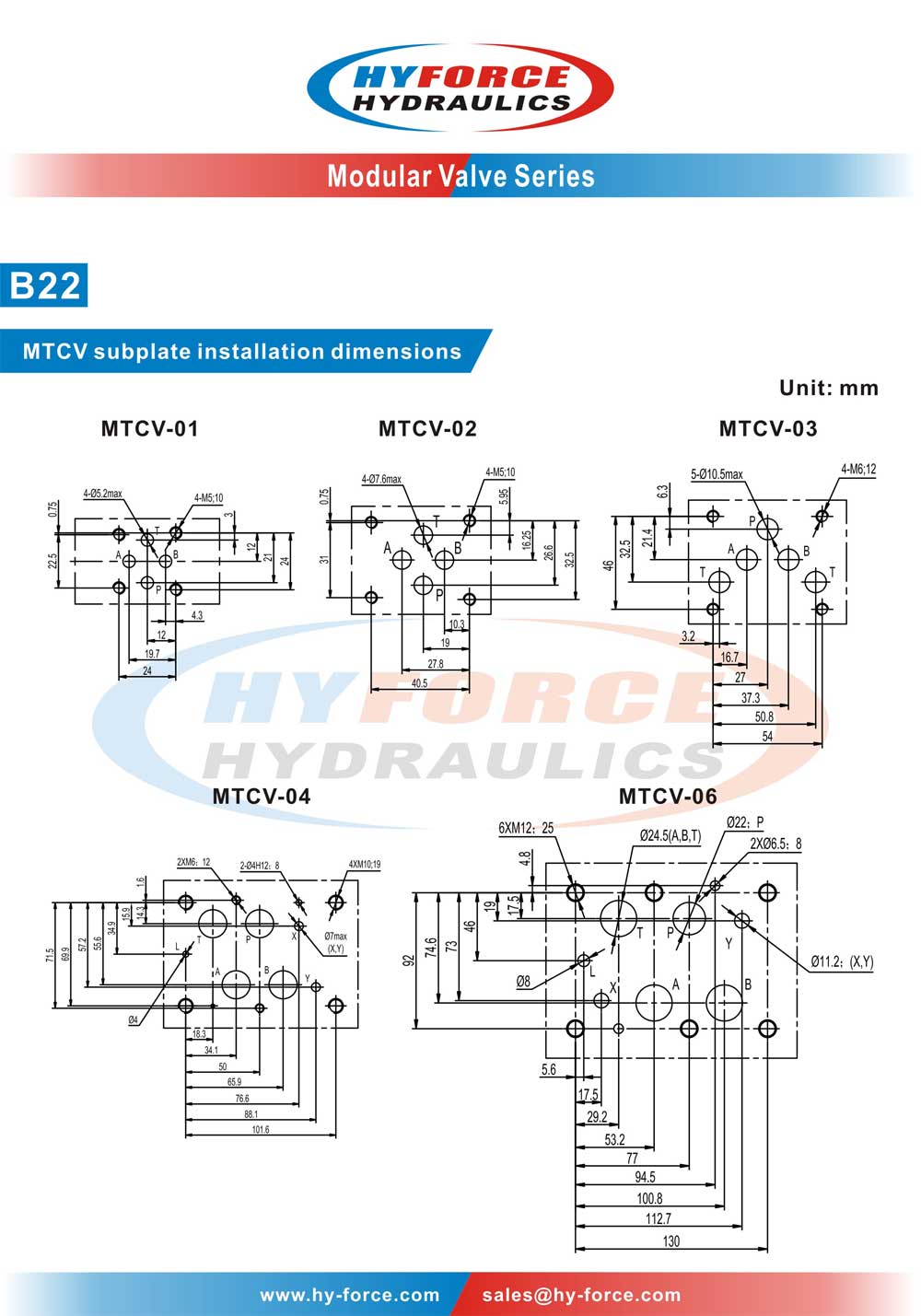

Specifications

表格

Configuration Options

Operational Characteristics

System Design Benefits

• Component Reduction – One valve provides functions requiring two conventional throttle check valves

• Space Efficiency – Reduced stack height and eliminated external piping

• Installation Simplification – Single valve body with common mounting pattern

• Commissioning Efficiency – Both directions adjusted at one accessible location

• Diagnostic Convenience – Centralized location for troubleshooting speed-related issues

• Cost Optimization – Lower total component cost plus reduced assembly labor

Installation Configuration Example

Standard Meter-Out Application (Cylinder Speed Control):

Directional Valve          MTCV                    Cylinder
     P (Pressure) ─────────┬──────────────────────────┐
     A ────────────────────┼──[Throttle A]──[Check A]─┼──→ A Port (Cap)
     B ────────────────────┼──[Throttle B]──[Check B]─┼──→ B Port (Rod)
     T (Tank) ─────────────┴──────────────────────────┘

Flow Paths:

• Extend (P→A, B→T): Port A throttle controls extension speed; Port B check valve opens for free return flow

• Retract (P→B, A→T): Port B throttle controls retraction speed; Port A check valve opens for free return flow

The MTCV Series Modular Throttle Check Valve delivers exceptional versatility and precision in a space-saving, cost-effective package—providing hydraulic designers with the bidirectional flow control essential for modern, high-performance automated machinery.
