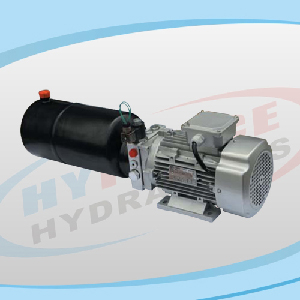

PPLT2 Series Power Packs for Lift Table

This power pack is designed for a lift table, which is consisted of high pressure gear pump, AC motor, multi-functional manifold, valves, tank, etc. The lowering movement is activated by a solenoid valve and the speed is controlled by a needle valve.
Port Size:
BSP 1/4" BSP 3/8" SAE-4 SAE-6
Motor voltage:
AC220 AC380
Working Pressure:
16MPa 21MPa
Pump displacement:
1.6cc/r 2.0cc/r 2.5cc/r 3.3cc/r
Tank capacity:
4L 5L 6L 8L 10L 12L
Quantity:
Inquire Add to Basket

  • PPLT2-A2/2.2-G2.5-SRH8-P21-G24M-4G, PPLT2-A3/3.0-G2.5-SRH8-P21-G24M-4G, PPLT2-A2/2.2-G3.3-SRH8-P21-G24M-4G, PPLT2-A3/3.0-G3.3-SRH8-P21-G24M-4G, PPLT2-A2/2.2-G2.5-SRH10-P21-G24M-4G, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • P17-P18

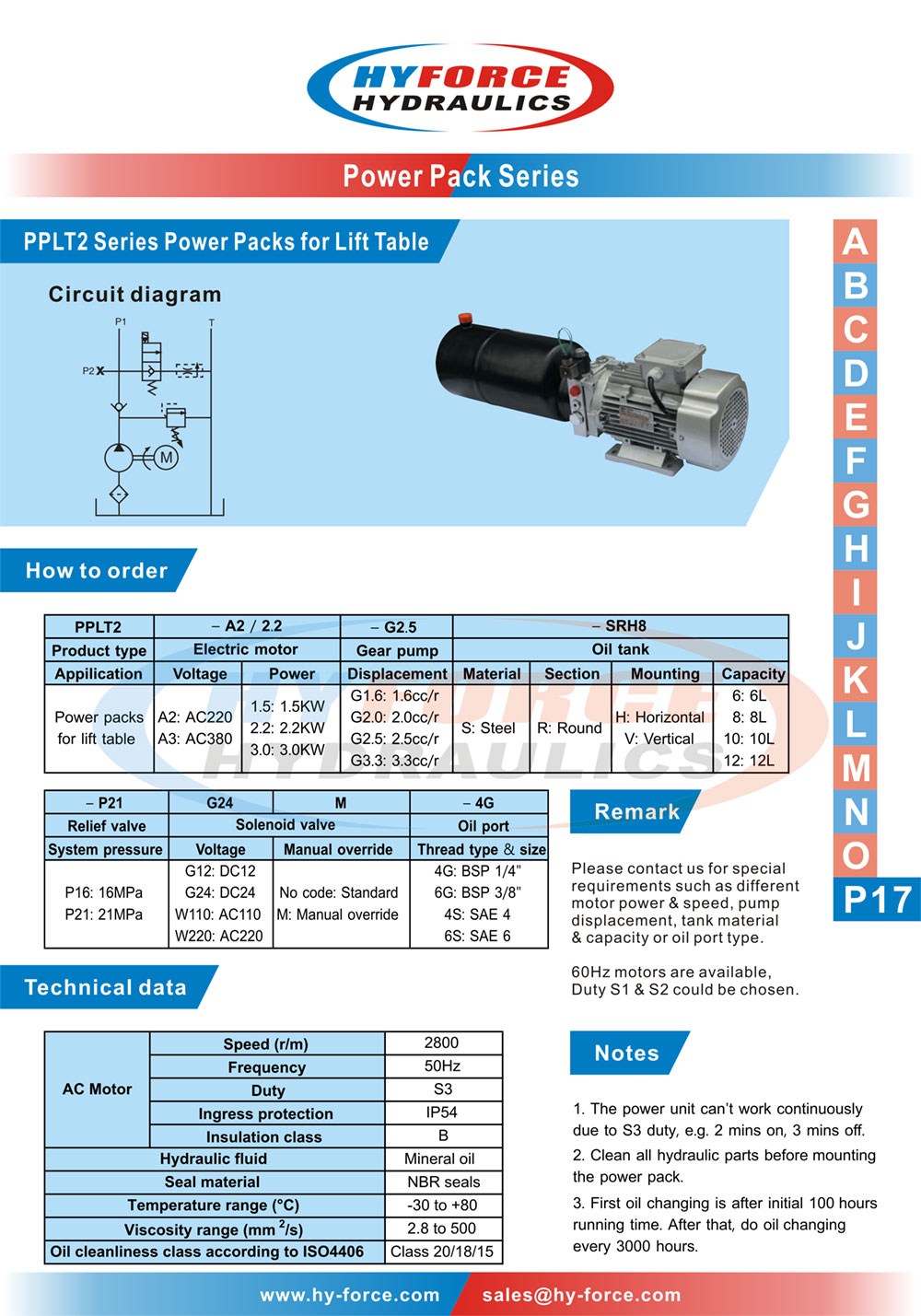

P17

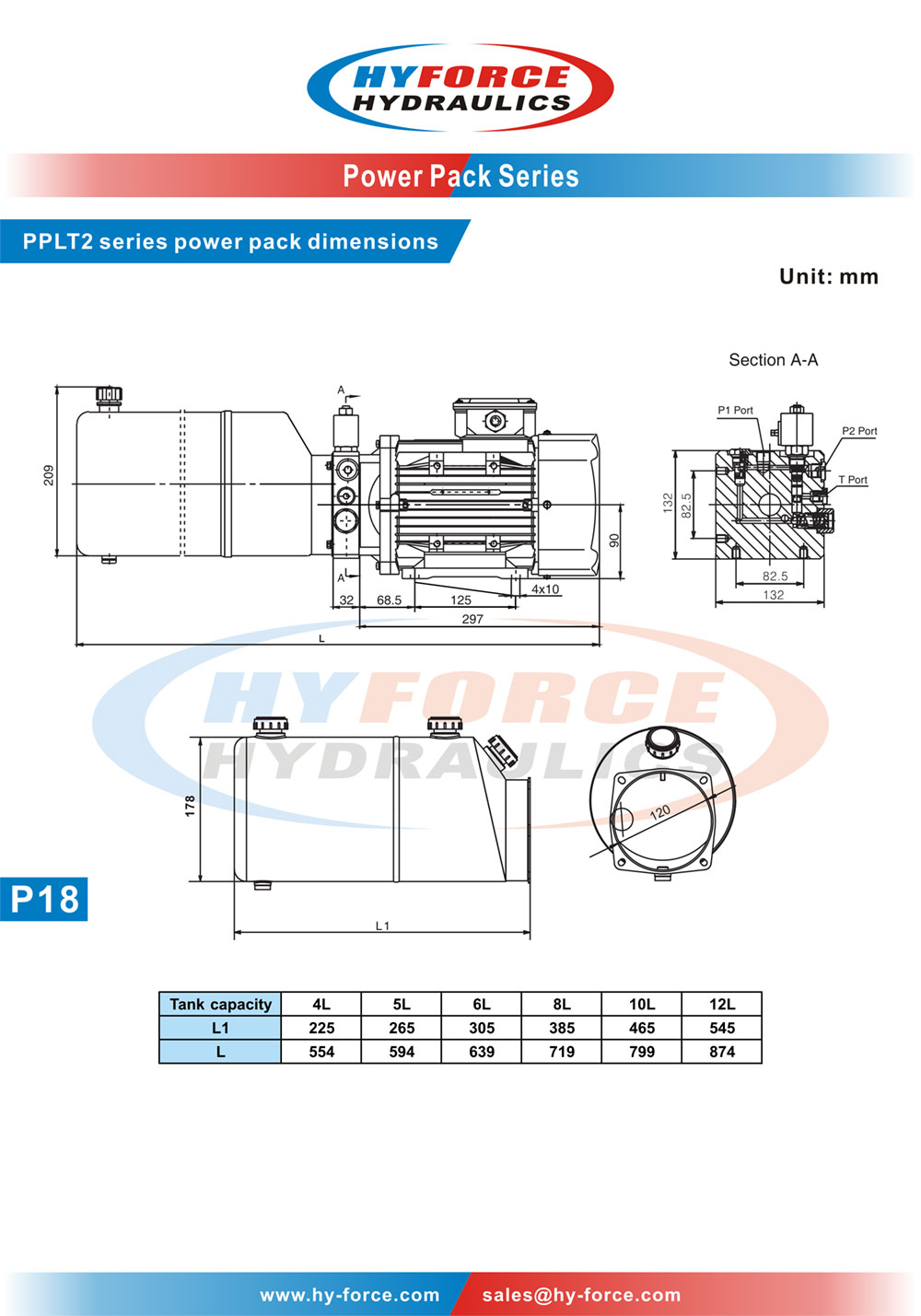

P18
