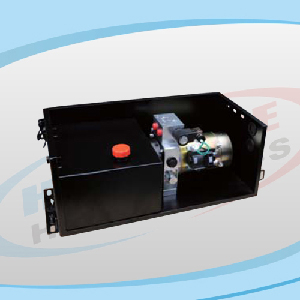

PPTL1 Series Power Packs for Tailgate Lift

This power pack is used to control the opening/closing and lifting/lowering of tailgates of trucks. The pressure compensated flow control valve regulates the opening and lowering speed automatically.

Port Size:	BSP 1/4" BSP 3/8" SAE-4 SAE-6
Motor voltage:	DC24
Working Pressure:	16MPa 21MPa
Pump displacement:	2.5cc/r
Tank capacity:	11L
Quantity:



Inquire Add to Basket

Model:
PPTL1-D2/2.0-G2.5-SBH11-P21-G24M-4G, PPTL1-D2/2.0-G2.5-SBH11-P21-G24M-6G, PPTL1-D2/2.0-G2.5-SBH11-P21-G24M-4S, PPTL1-D2/2.0-G2.5-SBH11-P21-G24M-6S, etc.
Brand:
HYFORCE HYDRAULICS / OEM is also avaliable.
Code:

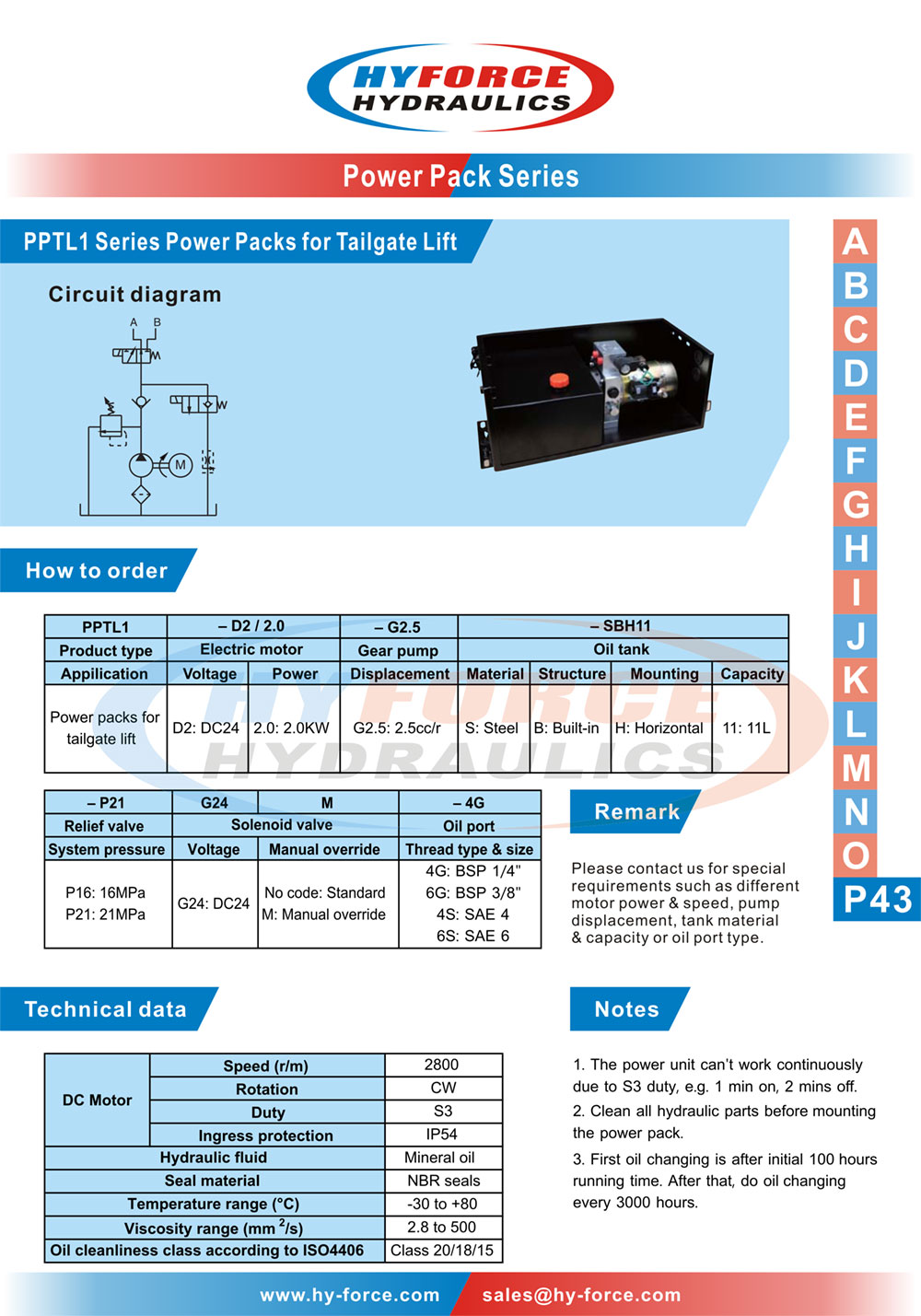

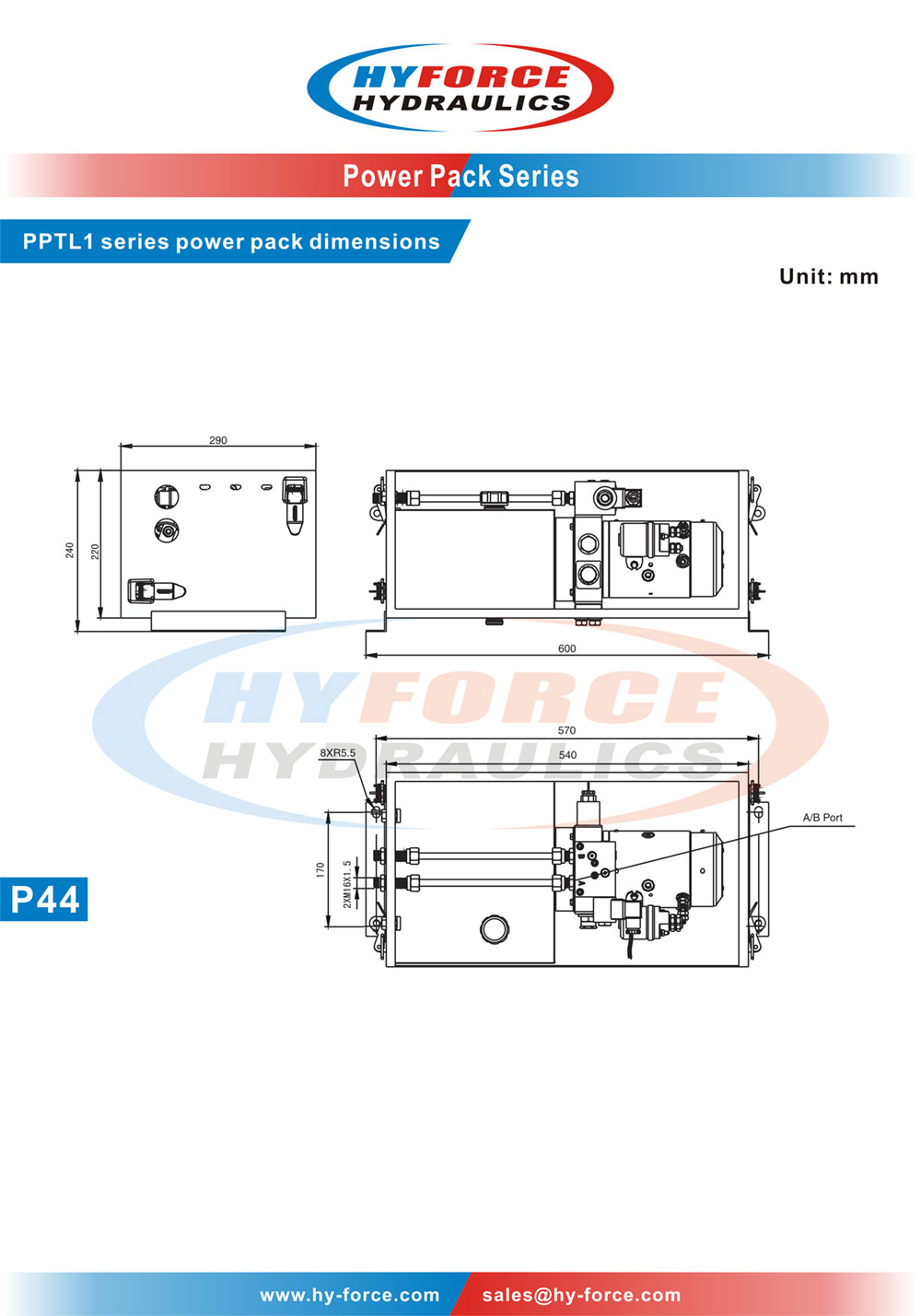

P43-P44
