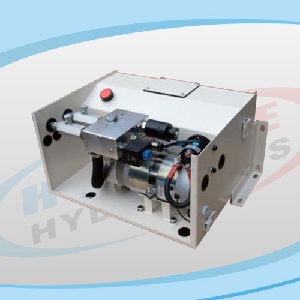

PPTL2 Series Power Packs for Tailgate Lift

This power pack is used to control the opening/closing and lifting/lowering of tailgates of trucks. The pressure compensated flow control valve regulates the opening and lowering speed automatically.
Port Size:
BSP 1/4" BSP 3/8" SAE-4 SAE-6
Motor voltage:
DC24
Working Pressure:
16MPa 21MPa
Pump displacement:
2.5cc/r 3.3cc/r
Tank capacity:
12L

  • PPTL2-D2/2.0-G2.5-SBH12-P21-G24M-4G, PPTL2-D2/2.0-G2.5-SBH12-P21-G24M-6G, PPTL2-D2/2.0-G2.5-SBH12-P21-G24M-4S, PPTL2-D2/2.0-G2.5-SBH12-P21-G24M-6S, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • P45-P46

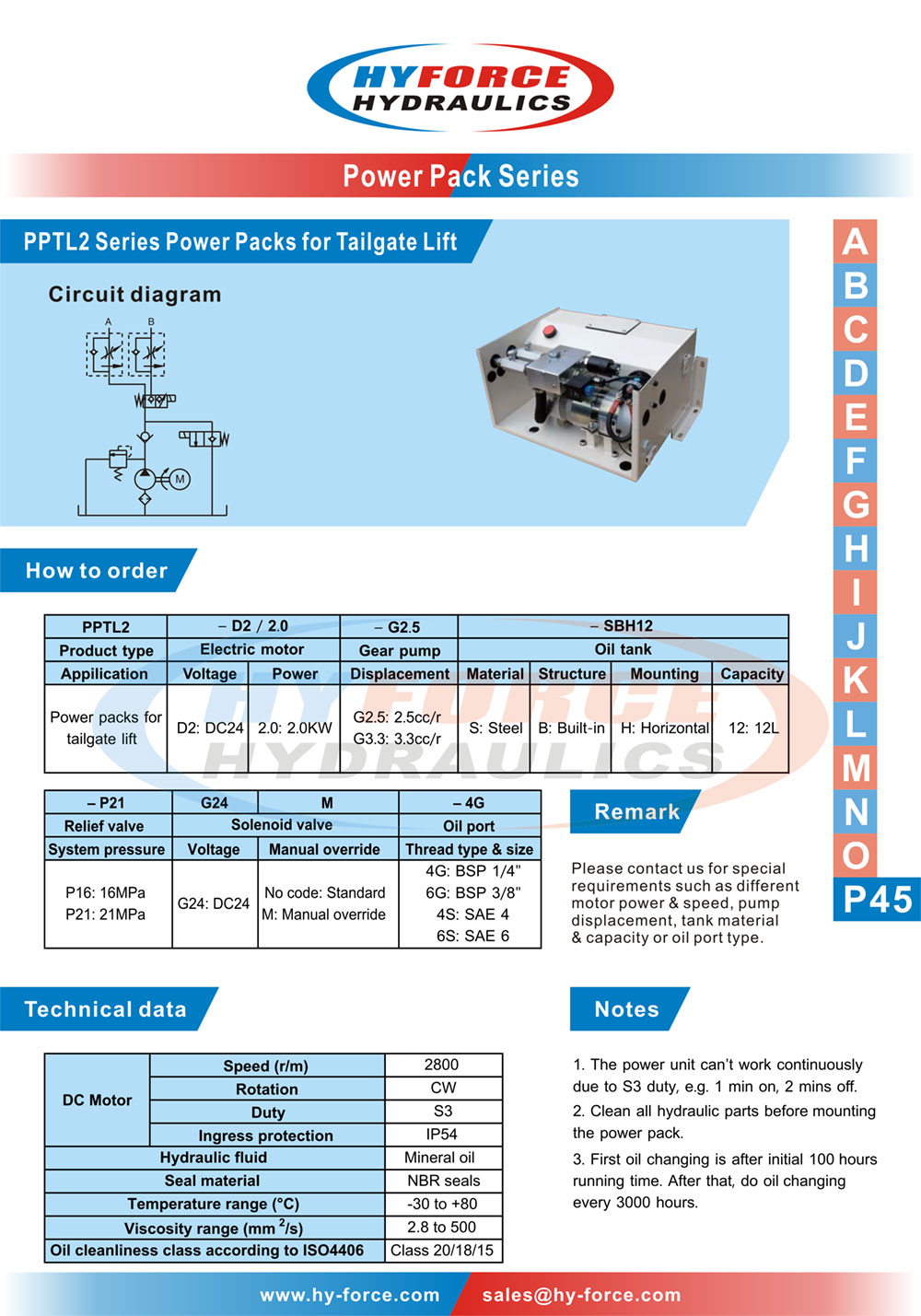

P45

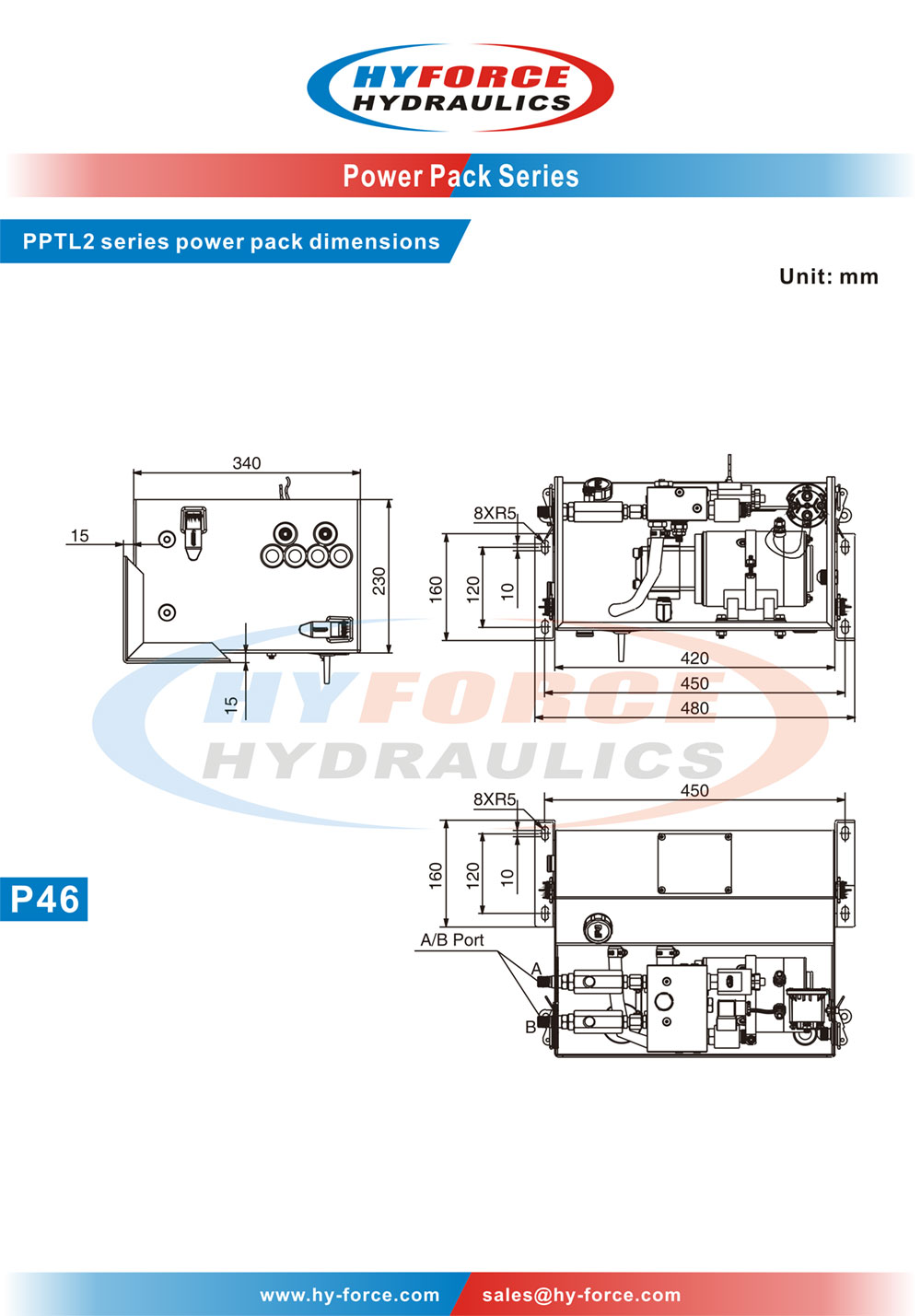

P46
