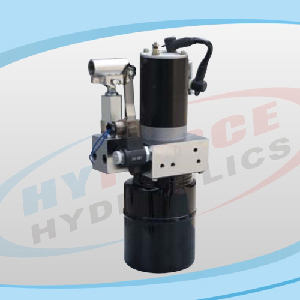

PPW Series Power Packs for Wheelchair

The power pack is designed for lifting the disabled people's wheelchair when they are getting on or off a certain type of vehicle. It is consisted of high pressure gear pump, hand pump, motor, multi-functional manifold, valve, tank, etc. With a hand pump, the power pack can be operated even if electrical power is not available.
Port Size:
BSP 1/4" SAE-4
Motor voltage:
DC12 DC24
Working Pressure:
16MPa 21MPa
Pump displacement:
0.5cc/r 0.75cc/r 1.0cc/r
Tank capacity:
1.4L
Quantity:
Inquire Add to Basket

  • PPW-D1/0.75-G1.0-SRV1.4-P21-G24M-4G, PPW-D2/0.75-G1.0-SRV1.4-P21-G24M-4G, PPW-D1/0.75-G1.0-SRV1.4-P16-G24M-4G, PPW-D2/0.75-G1.0-SRV1.4-P16-G24M-4G, PPW-D2/0.75-G0.5-SRV1.4-P16-G24M-4G, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • P51-P52

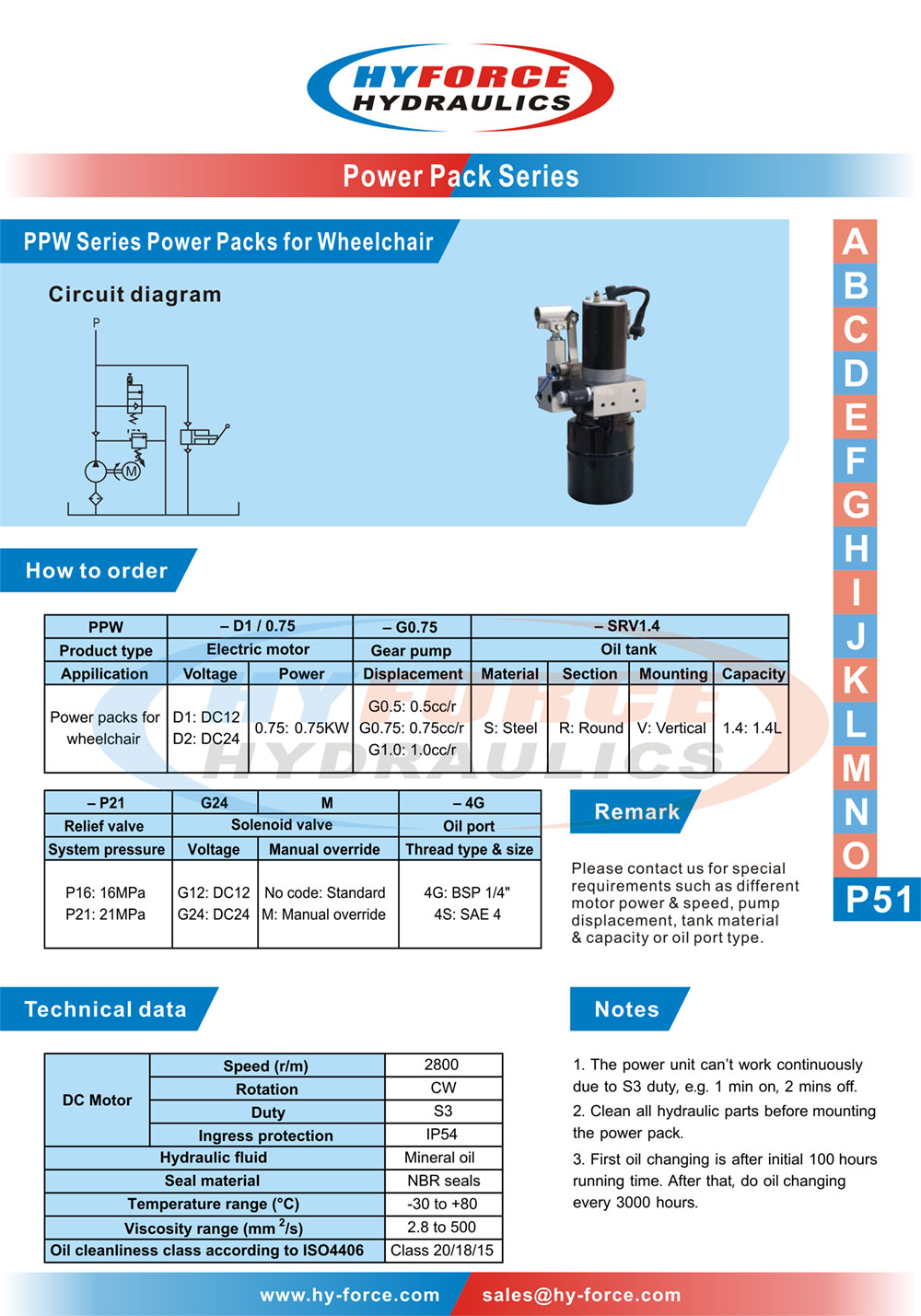

P51

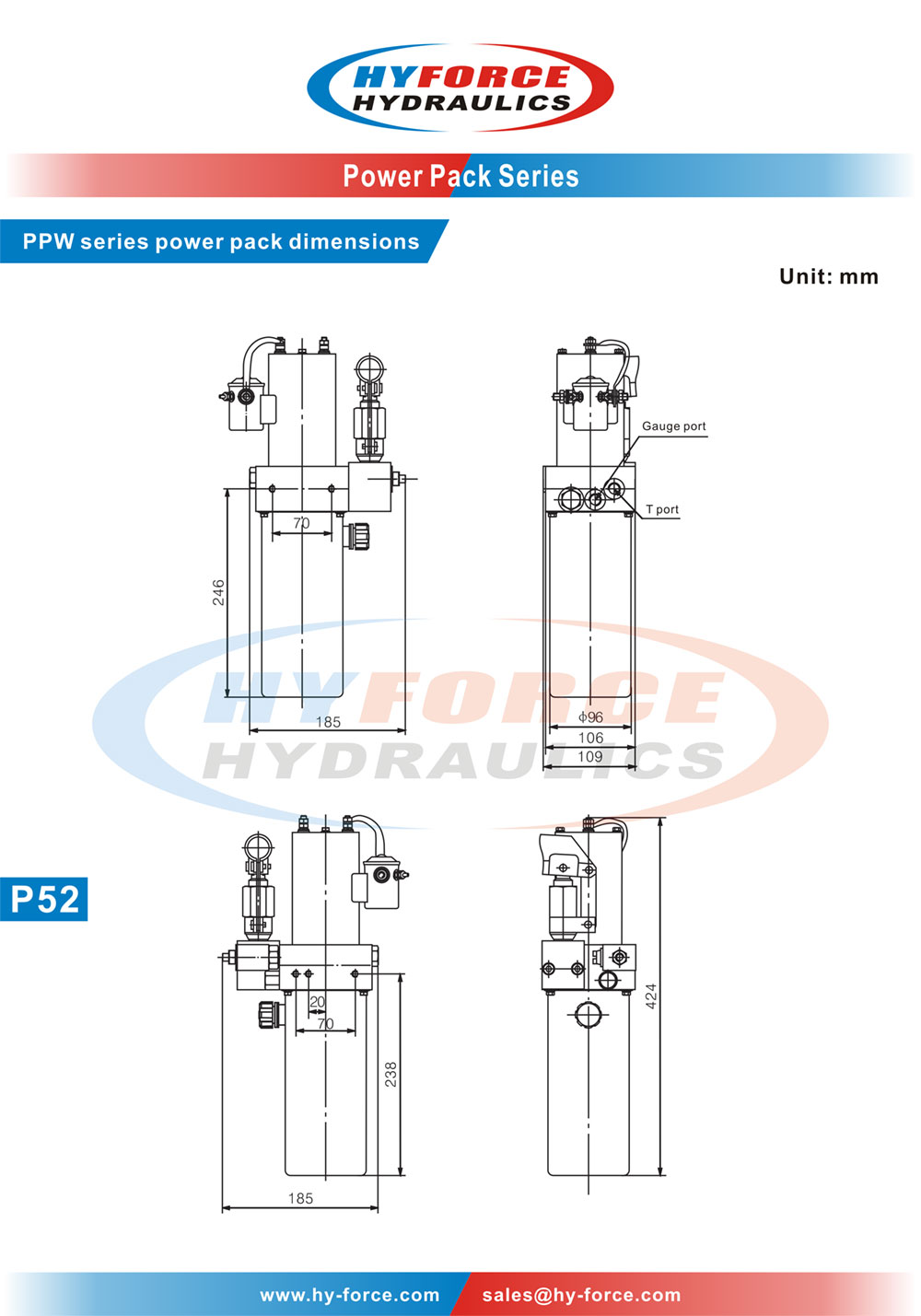

P52
