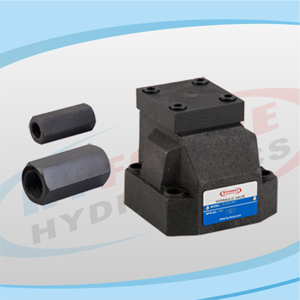

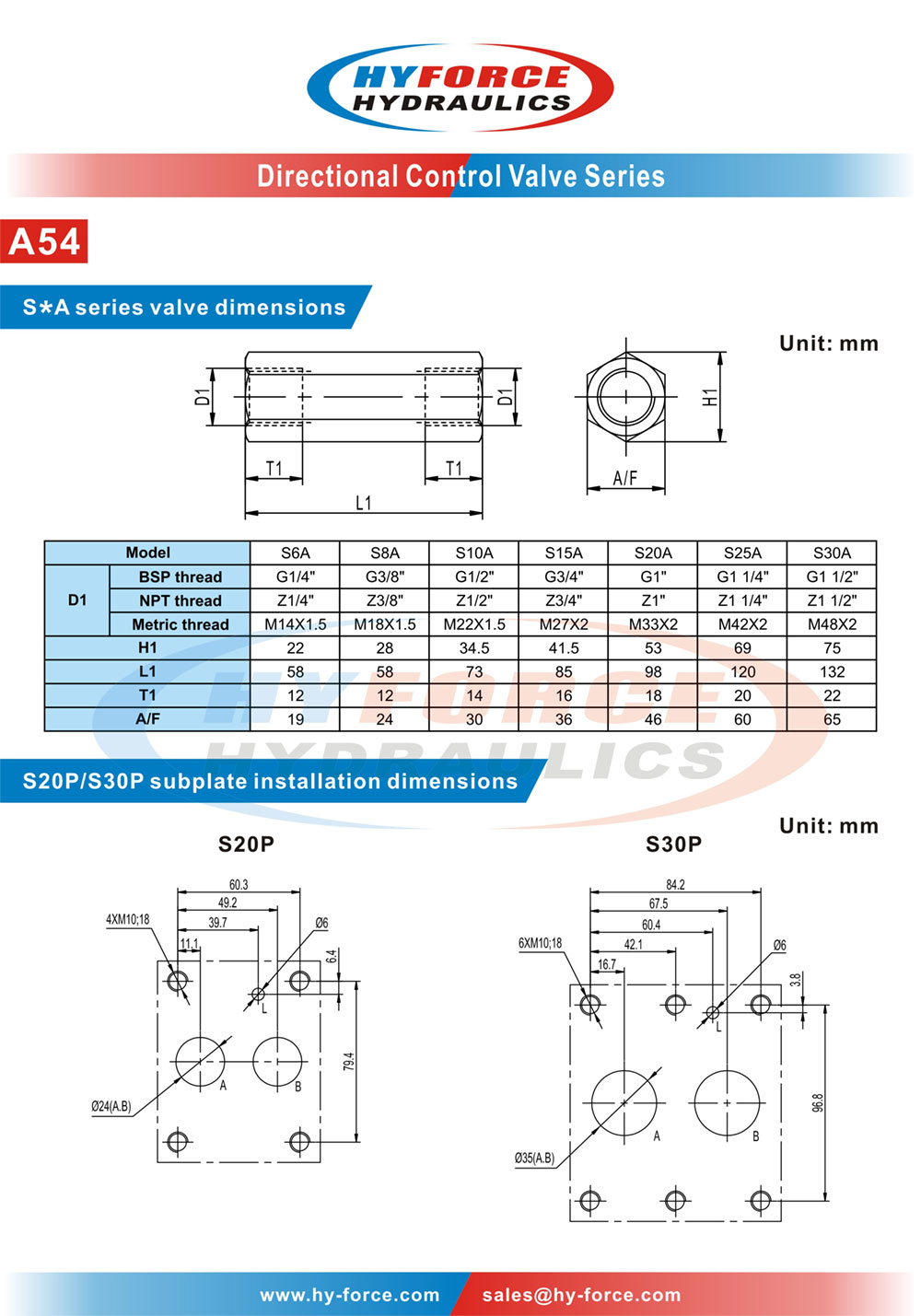

S Series Check Valves

Overview

The S Series In-line Check Valve is a robust, high-performance hydraulic component designed to ensure unidirectional fluid flow in hydraulic systems. Featuring a compact hexagonal external body construction, this valve allows free flow in one direction while preventing reverse flow, protecting system integrity and enhancing operational safety.

Key Features

• Compact Hexagonal Design: The distinctive hexagonal outer profile enables easy installation and wrench-tightening in confined spaces

• Straight-Through Flow Path: Minimizes pressure drop and turbulence for efficient system performance

• Precision-Engineered Internal Mechanism: Ensures reliable sealing and quick response to flow direction changes

• Durable Construction: Manufactured from high-grade steel with protective surface treatment for extended service life in demanding environments

• Threaded End Connections: Standard female threads on both ends for seamless integration with hydraulic fittings and tubing

Primary Functions

1. Flow Direction Control: Permits fluid passage in the forward direction only

2. Backflow Prevention: Automatically seals against reverse flow to prevent system damage

3. Pressure Isolation: Maintains pressure in specific circuit sections when pump operation ceases

4. System Protection: Safeguards pumps, actuators, and other sensitive components from pressure spikes and fluid contamination caused by reverse flow

Typical Applications & Usage Scenarios

Industrial Hydraulic Systems

• Installed in hydraulic power units to prevent oil backflow when pumps are shut down

• Used in cylinder circuits to maintain load position and prevent drifting

• Integrated into accumulator circuits to maintain pre-charge pressure

Mobile Equipment

• Essential component in construction machinery (excavators, loaders, cranes) hydraulic circuits

• Used in agricultural equipment to ensure implement stability during transport

• Applied in material handling equipment (forklifts, pallet jacks) for safe load holding

Manufacturing & Automation

• Protects precision hydraulic presses from pressure loss during cycle interruptions

• Maintains clamping force in CNC machine tool workholding systems

• Ensures sequential operation in multi-actuator automated production lines

Specialized Applications

• Prevents gravity-induced reverse flow in vertical cylinder applications

• Used in hydraulic braking systems for fail-safe operation

• Integrated into test equipment and calibration stands for precise pressure control

Technical Advantages

The S Series design eliminates the need for complex bypass circuitry in many applications, reducing system cost and complexity. Its straight-through configuration offers lower flow resistance compared to right-angle check valves, making it ideal for high-flow, low-pressure-drop requirements. The all-metal construction ensures compatibility with a wide range of hydraulic fluids, including mineral oils, water-glycol mixtures, and synthetic fluids.

Installation Notes

For optimal performance, install with the flow arrow (cast or marked on the body) pointing in the direction of desired flow. The valve may be mounted in any orientation, though vertical installation with the flow direction upward typically provides the most responsive sealing action. Ensure proper torque specifications are followed when connecting to prevent thread damage and ensure leak-free operation.
