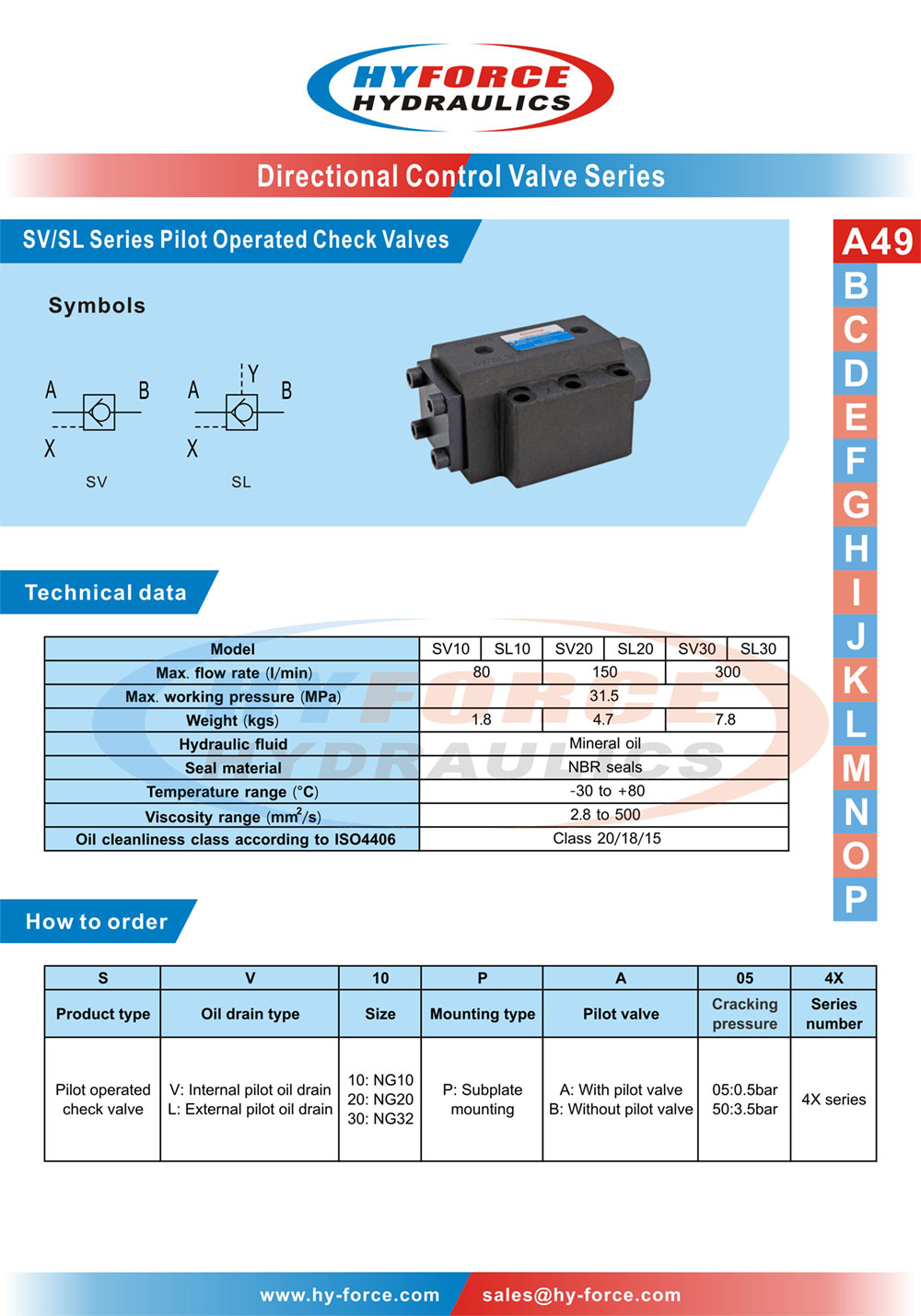

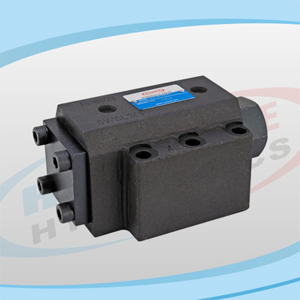

SV/SL Series Pilot Operated Check Valves

Overview

The SV/SL Series are pilot-operated check valves (also known as hydraulic pilot check valves or hydraulic locks) designed for secure load holding and controlled release in hydraulic systems. These valves function as standard check valves allowing free flow in one direction while blocking reverse flow, but can be remotely opened via hydraulic pilot pressure to permit controlled return flow. The SV/SL series provides reliable load locking without leakage, making them essential safety components in lifting, pressing, and positioning applications.

Key Features

Primary Functions

1. Load Holding — Blocks hydraulic fluid flow in reverse direction to securely hold loads in position without drift

2. Controlled Release — Hydraulic pilot signal opens valve to allow controlled reverse flow for load lowering

3. System Isolation — Isolates actuator circuits for maintenance or emergency situations

4. Safety Protection — Prevents uncontrolled load descent due to hose failure, pipe rupture, or pump shutdown

5. Position Locking — Maintains precise cylinder or motor position during system idle periods

Detailed Application Scenarios

1. Hydraulic Presses & Stamping Equipment

• Function:

  • Holds press ram in elevated position during die changes

  • Maintains clamping force during forming operations

  • Prevents sudden ram drop in case of hydraulic system failure

• Operation: Pilot-operated release allows controlled ram descent via flow control valve independent of main system pressure

• Safety: Critical for personnel protection during maintenance; SL series recommended for zero-leakage holding

• Typical Setup: SL10 or SL20 for main ram; SV6 for auxiliary cylinders

2. Mobile Elevating Work Platforms (MEWPs) & Aerial Lifts

• Applications:

  • Scissor Lifts: Platform elevation holding and controlled descent

  • Boom Lifts: Telescopic boom extension and articulation holding

  • Cherry Pickers: Basket leveling and rotation control

  • Material Hoists: Load platform retention

• Safety Compliance: Meets ANSI/SIA A92, EN 280, and AS 1418 standards for load holding devices

• Advantage: Pilot-operated lowering provides smooth, controlled descent independent of engine speed or pump condition

• Configuration: Dual SL valves often used for double-acting cylinders (one per port) to provide load holding in both directions

3. Injection Molding Machines

• Function:

  • Mold clamping force maintenance during injection and cooling cycles

  • Core pull and slide retention during molding

  • Ejector plate position holding

  • Nozzle touch force maintenance

• Precision: SL series zero leakage ensures consistent clamping force for part quality; allows pump unloading while maintaining full clamping force for energy savings

• Efficiency: Reduces energy consumption by 15-30% by allowing pump de-pressurization during holding periods

4. Construction & Heavy Machinery

• Applications:

  • Excavators: Boom, arm, and bucket position holding during engine-off operation

  • Cranes: Load holding during lifting operations; prevents load drop if hydraulic line fails

  • Dump Trucks: Body hold during transport; controlled tipping via pilot release

  • Concrete Boom Pumps: Boom section holding and controlled positioning

  • Piling Rigs: Mast holding and hammer positioning

• Durability: Robust construction withstands shock loads, vibration, and contaminated hydraulic fluid common in construction environments

• Emergency Operation: Manual pilot release option available for lowering loads without engine power

5. Material Handling & Lifting Equipment

• Applications:

  • Forklifts: Mast tilt and fork positioning hold; prevents load spillage

  • Overhead Cranes: Hoist load holding and controlled lowering

  • Stackers & Palletizers: Lift carriage position maintenance

  • Dock Levelers: Platform height retention during loading

  • Automotive Lifts: Vehicle support during maintenance

• Advantage: Prevents load drift during transport; pilot release enables smooth, controlled lowering for precise load placement

6. Machine Tool Hydraulics

• Function:

  • Workpiece clamping force maintenance during machining operations

  • Counterbalance for vertical axis slides and spindles

  • Tailstock and quill position holding

  • Rotary table locking

• Precision: Maintains clamping force without continuous pump operation; reduces heat generation and improves system efficiency

• Surface Finish: Zero leakage critical for maintaining precise tool position during finish machining operations

7. Marine & Offshore Equipment

• Applications:

  • Deck Cranes: Load holding during vessel motion and wave action

  • Hatch Covers: Secured closure during sea transit

  • Anchor Windlasses: Chain and anchor holding; controlled payout

  • Steering Gear: Rudder position lock

  • Offshore Platform Equipment: Drilling support and production system hydraulics

• Corrosion Resistance: Optional marine-grade coatings, stainless steel components, and sealed pilot connections for saltwater environments

• Classification: Meets DNV, ABS, LR, and BV marine classification requirements

8. Renewable Energy Systems

• Wind Turbines:

  • Rotor brake holding during maintenance

  • Pitch cylinder position lock for emergency feathering

  • Yaw brake release control

  • Hydraulic tool hoisting systems for tower maintenance

• Solar Tracking Systems: Hydraulic actuator holding for precise panel orientation

• Hydropower: Gate and valve control in small hydroelectric installations

9. Mining & Tunneling Equipment

• Applications:

  • Roof Bolters: Drill positioning and support holding

  • Continuous Miners: Cutting head positioning

  • Tunnel Boring Machines (TBM): Cutter head support and segment erector positioning

  • Longwall Mining: Shield support holding

• Safety: Critical for personnel safety in underground operations; prevents equipment collapse due to hydraulic failure

Technical Advantages

• Zero Leakage Design (SL Series): Precision-ground poppet and hardened seat provide metal-to-metal sealing with leakage rates < 5 drops/minute—essential for load holding applications

• Soft Seal Option (SV Series): Elastomer seal for lower cracking pressures and improved response in low-pressure systems

• High Pilot Ratio Options: 3:1, 4:1, or 8:1 ratios allow opening with lower pilot pressures, reducing energy consumption and system complexity

• Fast Response: Pilot pressure opens valve within 20-40 ms for immediate load release when required

• Bi-Directional Flow: Free flow in forward direction with minimal pressure drop (typically < 0.5 bar at rated flow)

• Pre-Opening Feature: Optional pre-opening design reduces pressure shock and allows smooth load lowering in high-pressure applications

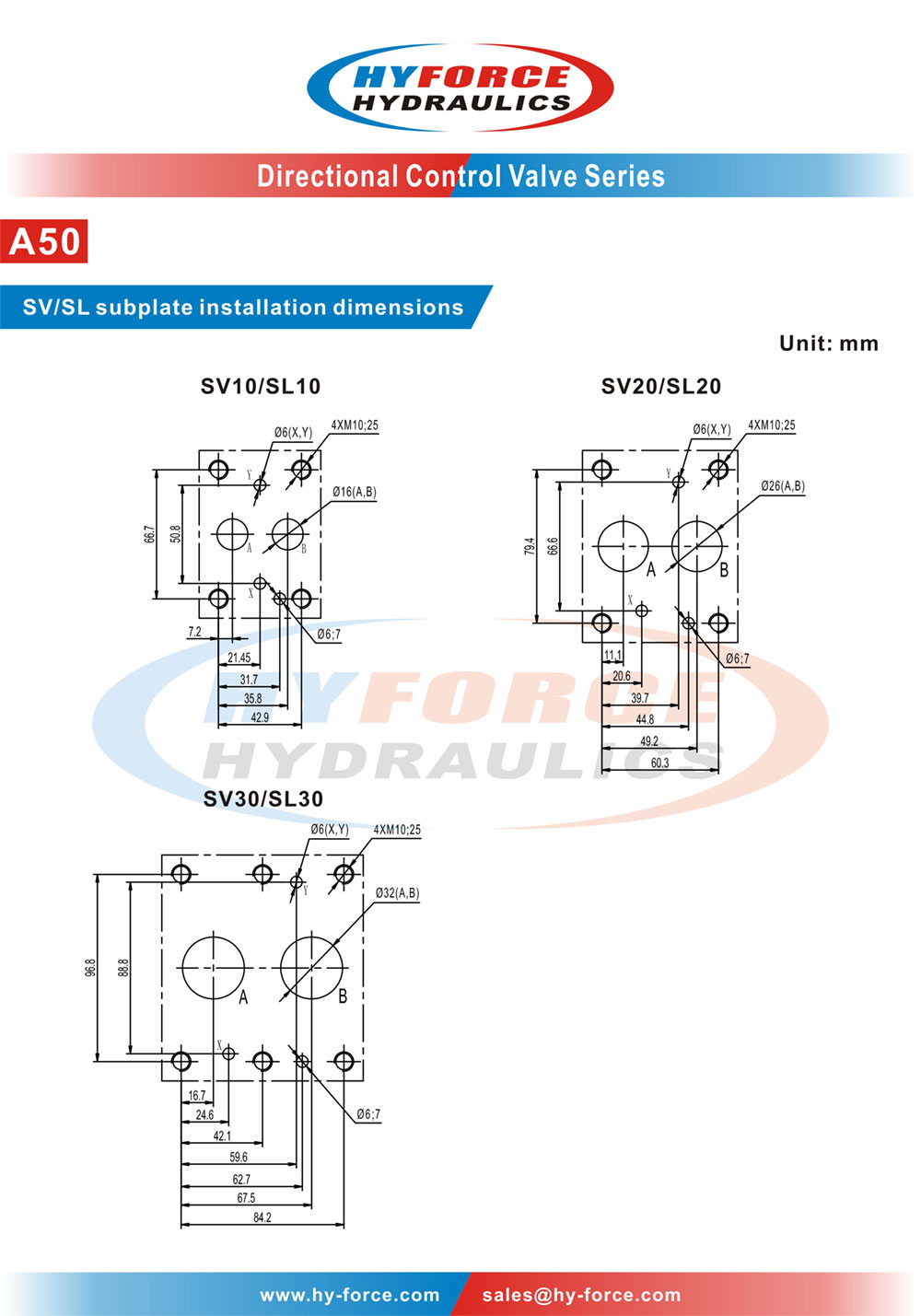

• Compact Integration: Cartridge versions install directly into actuator ports or manifold blocks; subplate versions for centralized valve assemblies

Installation & Maintenance Notes

• Mounting Orientation: Preferably vertical with poppet closing against gravity; horizontal mounting acceptable with proper consideration of pilot line routing

• Pilot Line Filtration: Critical to maintain ISO 4406 18/16/13 cleanliness to prevent pilot orifice blockage and ensure reliable opening

• Back Pressure Consideration: Tank line back pressure affects pilot operation; ensure tank line pressure remains below 20 bar or use external drain option

• Pre-Opening Valve: Consider pre-opening design for applications with high load pressures (>200 bar) to reduce pressure shock during opening

• Dual Valve Configuration: For double-acting cylinders requiring holding in both directions, install one SV/SL valve in each cylinder line (A and B ports)

• Pressure Spikes: Install accumulators or dampening orifices if system experiences severe pressure spikes to protect valve seat and poppet

Conclusion

The SV/SL Series pilot-operated check valves represent the industry standard for secure load holding and controlled release in hydraulic systems. Whether ensuring operator safety in aerial work platforms, maintaining precision in injection molding, securing heavy loads in construction equipment, or providing reliable backup in marine systems, these valves deliver the performance and reliability that hydraulic system designers demand. The choice between SV (soft seal) and SL (metal-to-metal) series allows optimization for specific application requirements, from general hydraulic circuits to critical safety systems where zero leakage is mandatory.
