Z2FS Series Modular Throttle Check Valves

Overview

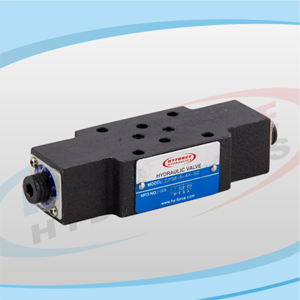

The Z2FS Series Modular Throttle Check Valve is a precision flow control component that combines adjustable throttling capability with integral free reverse flow in a compact modular package. This sandwich-mounting valve regulates actuator speed by controlling flow in one direction while permitting unrestricted return flow through a built-in check valve. Available in multiple port configurations and flow capacities, the Z2FS series provides reliable, repeatable speed control for hydraulic systems requiring precise motion profiles.

Key Functions

Primary Applications

• Injection Molding Machines – Controlled mold open/close speeds and ejector timing

• Machine Tools – Precision feed rate control for slides, tables, and spindle heads

• Material Handling Equipment – Smooth acceleration/deceleration of conveyor systems and lift mechanisms

• Hydraulic Presses – Controlled approach, pressing, and return speeds for quality forming operations

• Mobile Equipment – Cylinder speed regulation in excavators, loaders, and agricultural machinery

• Automated Production Lines – Synchronized motion sequences for robotic and transfer systems

Detailed Usage Scenarios

Scenario 1: Injection Molding Mold Speed Profiling

In high-speed injection molding machines, mold open and close speeds significantly impact cycle time and part quality. The Z2FS is installed to control:

• Fast close (initial approach): Minimal restriction for rapid motion

• Slow close (final mold protection): Increased restriction to prevent mold damage from impact

• Controlled open: Metered flow for smooth part release without ejection defects

By adjusting the Z2FS setting, processors optimize the speed profile without modifying pump flow or directional valve timing—enabling quick setup changes for different mold sizes and part geometries.

Scenario 2: Machine Tool Feed Axis Control

CNC machining centers require precise, stable feed rates for surface finish quality and dimensional accuracy. The Z2FS provides:

• Consistent cutting speeds despite varying cutting forces and material hardness

• Smooth deceleration before direction changes to eliminate shock marks

• Rapid traverse override (when check valve opens) for fast positioning between cuts

Installed at the cylinder or motor port, the valve's fine adjustment capability allows operators to dial in exact feed rates in mm/min or inches/min for optimal chip formation and tool life.

Scenario 3: Hydraulic Press Motion Sequencing

Stamping presses and deep drawing presses require distinct speed phases:

1. Fast approach: Rapid advance to contact the workpiece

2. Pressing speed: Slow, controlled forming to prevent material tearing

3. Dwell: Brief hold at bottom for coining or calibration

4. Fast return: Rapid retraction for next cycle

Multiple Z2FS valves installed at different cylinder ports enable independent control of each phase. The check valve function ensures rapid return flow for fast cycle completion, while the throttle setting provides the pressing speed precision critical for part quality.

Scenario 4: Crane and Hoist Load Lowering

In mobile cranes and overhead hoists, controlled lowering of suspended loads is a safety-critical function. The Z2FS installed in the meter-out configuration (restricting return flow from the cylinder) provides:

• Load-controlled descent: The valve restricts flow leaving the cylinder, preventing gravity-induced runaway

• Smooth speed regulation: Operators adjust the setting for precise load placement

• Rapid lifting: The check valve opens fully for unrestricted up-direction flow

This configuration is often called a "safety flow control" and is preferred over simple throttle valves for vertical load handling.

Scenario 5: Conveyor System Acceleration Control

Automated pallet conveyors and assembly line transfer systems require smooth acceleration to prevent product shifting or damage. The Z2FS controls:

• Soft start: Restricted flow during initial cylinder extension to gradually accelerate the load

• Full speed operation: Once moving, system pressure drops and flow increases naturally

• Controlled deceleration: Meter-out restriction cushions the stop at the end of travel

The result is gentler handling of delicate products, reduced mechanical wear on conveyor components, and quieter operation in cleanroom or noise-sensitive environments.

Scenario 6: Synchronized Multi-Cylinder Systems

Large press brakes, die casting machines, and sizing presses often feature multiple cylinders that must move in perfect synchronization to prevent binding or racking. The Z2FS enables:

• Individual speed trimming at each cylinder to compensate for variations in load distribution, seal friction, and piping geometry

• Fine synchronization without expensive flow dividers or servo-proportional controls

• Field adjustment as machine wear changes over time

Technicians can "tune" each Z2FS setting to achieve parallel motion within millimeters across meters of stroke length.

Technical Advantages

• Bi-Directional Configuration Options – Available as meter-in (restricting P→A or P→B) or meter-out (restricting A→T or B→T) to suit application requirements

• Precision Needle Design – Hardened, tapered needle provides sensitive adjustment across the full flow range with excellent repeatability

• Visual Position Indicator – Adjustment knob with numerical scale enables documented, repeatable settings and quick troubleshooting

• Tamper-Resistant Locking – Locknut secures the adjustment against vibration-induced drift

• Compact Modular Construction – Eliminates external throttle valve assemblies and associated piping; mounts directly in the valve stack

• Low Pressure Drop – Free-flow check valve direction offers minimal restriction for maximum system efficiency

• Wide Viscosity Range – Stable flow characteristics across typical hydraulic fluid temperature ranges

Specifications

Operational Characteristics

System Design Benefits

• Cost Efficiency – Single valve replaces separate throttle and check valve assemblies

• Space Savings – Modular mounting eliminates external valve manifolds and connecting hoses

• Leak Reduction – Fewer external connections minimize potential leak points

• Setup Flexibility – Field-adjustable speeds accommodate changing production requirements without hardware modifications

• Diagnostic Access – Centralized valve stack location simplifies troubleshooting and maintenance

Installation Configuration Examples

Meter-In Control (Cylinder Extension):

Pump (P) → Directional Valve → Z2FS (P→A restricted) → Cylinder (A port)
                                      ↓
                               Check valve bypass (A→P free flow)

Meter-Out Control (Load Lowering):

Cylinder (A port) → Z2FS (A→T restricted) → Tank (T)
                          ↓
                   Check valve bypass (T→A free flow for lifting)

The Z2FS Series Modular Throttle Check Valve delivers the precise, reliable flow control essential for modern hydraulic automation—combining the functionality of two valves in one compact, easily integrated package that optimizes both performance and system design efficiency.
