Z2S Series Modular Pilot Operated Check Valves

Overview

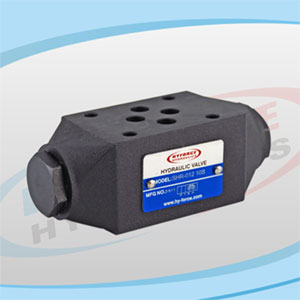

The Z2S Series Modular Pilot-Operated Check Valve is a high-performance hydraulic control component designed for reliable load holding and directional flow control in sophisticated hydraulic systems. This valve combines the functions of a standard check valve with pilot-operated release capability, enabling free flow in one direction while providing positive sealing against reverse flow until pilot pressure is applied. The compact modular sandwich design conforms to international mounting standards, allowing seamless integration into stacked valve assemblies without external piping.

Key Features

• Modular Sandwich Plate Design: Standardized CETOP 03/05 or NG6/NG10 mounting patterns (Z2S6/Z2S10 series) enable direct stacking between directional valves and subplates

• Pilot-Operated Release: Remote hydraulic pilot signal allows controlled opening of the check function for reverse flow when required

• Precision-Guided Poppet Design: Ensures reliable sealing and minimal leakage during extended load-holding periods

• Compact Construction: Space-efficient rectangular body with precision-machined mounting surfaces and standardized port patterns

• High-Pressure Capability: Engineered for demanding hydraulic applications with excellent pressure retention characteristics

• Durable Surface Treatment: Phosphate-coated or painted steel body provides corrosion resistance for industrial environments

• Visual Flow Direction Indication: Standardized hydraulic symbols cast or marked on valve body for easy circuit identification

Primary Functions

1. Load Holding: Provides zero-leakage sealing to maintain cylinder or motor position under load for extended periods

2. Free Forward Flow: Allows unrestricted fluid passage in the normal working direction with minimal pressure drop

3. Pilot-Operated Reverse Flow: Permits controlled reverse flow when pilot pressure is applied, enabling cylinder retraction or motor reversal

4. System Isolation: Isolates circuit branches to prevent pressure loss and maintain system efficiency

5. Safety Locking: Acts as a hydraulic safety device preventing uncontrolled load movement in the event of line failure

Typical Applications & Usage Scenarios

Industrial Hydraulic Machinery

• Machine Tool Workholding: Maintains clamping force on CNC machining centers and lathes during cutting operations; pilot release allows rapid unclamping when machining cycle completes

• Injection Molding Machines: Locks mold clamping cylinders in closed position during plastic injection; pilot operation enables controlled mold opening at cycle end

• Hydraulic Presses: Holds press ram in elevated position during loading/unloading; pilot release provides controlled descent for pressing operations

• Die Casting Equipment: Maintains die closing force during metal injection; enables smooth die opening for part ejection

Mobile & Construction Equipment

• Hydraulic Excavator Attachments: Locks auxiliary hydraulic circuits for grapples, thumbs, and quick-couplers in position during operation; pilot release allows rapid attachment repositioning

• Loader Lift Arms: Maintains bucket position during transport and material handling; pilot operation enables controlled lowering for precise dumping

• Aerial Work Platforms: Provides fail-safe holding of scissor lift platforms and boom arms at working height; pilot-controlled descent ensures smooth, safe lowering of personnel

• Concrete Pump Trucks: Locks placing boom sections during pumping operations; enables smooth boom repositioning via pilot control

Material Handling & Automation

• Automated Guided Vehicles (AGVs): Maintains lift fork position during transport; pilot release enables controlled loading/unloading operations

• Palletizing Robots: Locks gripper cylinders during product transfer; allows controlled release at placement points

• Warehouse Stacker Cranes: Holds lifting mechanisms in precise vertical positions; enables smooth acceleration/deceleration via pilot control

• Conveyor Systems: Controls tensioning cylinders and positioning actuators in automated production lines

Specialized Industrial Applications

• Metal Rolling Mills: Maintains roll gap positioning cylinders; enables rapid adjustment via pilot operation

• Paper & Textile Machinery: Controls dancer roll positioning and tensioning cylinders; provides smooth response to material variations

• Rubber & Plastic Processing: Locks calender roll positions and extruder components; enables precise gap adjustment

• Steel & Metal Processing: Controls shear blade positioning and coil handling equipment; ensures precise material cutting and forming

Energy & Infrastructure

• Wind Turbine Hydraulic Systems: Locks blade pitch cylinders and yaw brake systems; enables controlled adjustment for optimal power generation

• Hydraulic Dam Gates: Provides secure holding of gate positioning cylinders; enables controlled opening/closing for water flow management

• Ship Deck Machinery: Controls hatch covers, cargo handling equipment, and mooring winches; ensures safe operation in marine environments

Technical Advantages

The Z2S Series delivers significant performance benefits in modern hydraulic system design:

• Zero-Leakage Load Holding: Precision-machined poppet and seat geometry ensures minimal internal leakage, maintaining load position for hours or even days without drift

• Modular System Integration: Sandwich plate construction eliminates external piping, reducing installation time, potential leak points, and overall system footprint

• Flexible Pilot Operation: Can be operated via internal pilot (from opposite cylinder port) or external pilot (from remote pressure source) depending on circuit requirements

• Response Speed Optimization: Lightweight poppet design ensures rapid response to pilot signals for dynamic system performance

• Pressure Efficiency: Optimized flow geometry minimizes pressure drop during forward flow, reducing energy consumption and heat generation

• Maintenance Accessibility: Modular design allows individual valve replacement without disturbing adjacent components or system piping

Operating Principle

The Z2S valve functions as a hydraulically-actuated check valve. In the normal position, fluid flows freely from port A to port B, lifting the main poppet off its seat. Reverse flow from B to A is blocked by the poppet under spring and load pressure. When pilot pressure is applied to the pilot port (X) or internally from the opposite cylinder line, it acts on the pilot piston, which mechanically lifts the main poppet from its seat. This opens the flow path from B to A, allowing controlled reverse flow. The pilot area ratio determines the relationship between load pressure and required pilot pressure for opening.

Installation & Configuration Guidelines

• Mounting Standards: Z2S6 conforms to NG6/CETOP 03; Z2S10 conforms to NG10/CETOP 05 mounting patterns

• Port Identification: Standard port labeling - A and B (main flow)

• Flow Direction: Verify proper mounting orientation; valve body markings indicate permitted flow directions

• Torque Specifications: Follow manufacturer specifications for mounting bolt torque to ensure proper sealing without distortion

• Fluid Cleanliness: Maintain ISO 4406 18/16/13 cleanliness level or better for reliable long-term operation

Performance Specifications

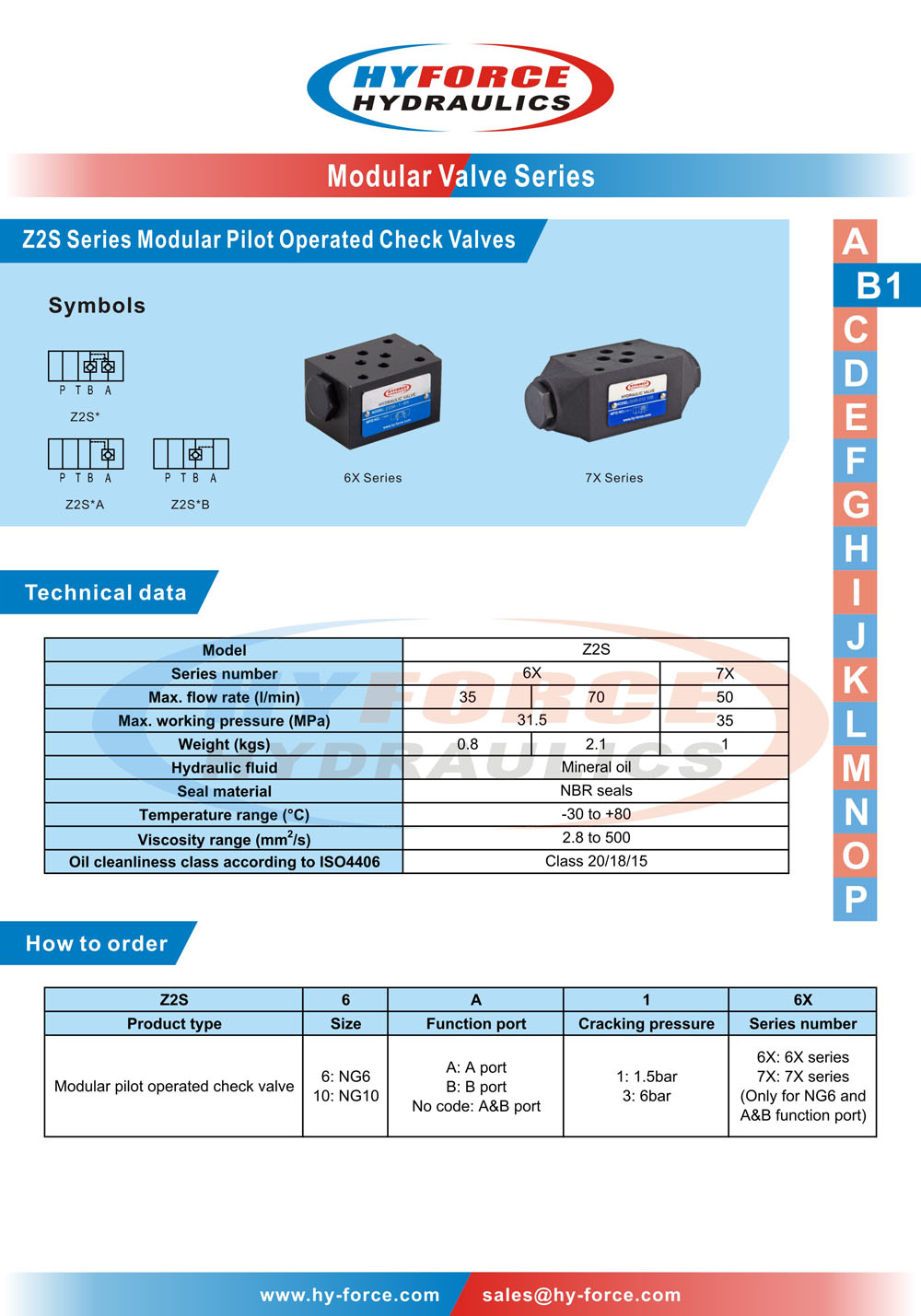

Model Code Interpretation (Example: Z2S6-1-6X)

• Z2S: Pilot-operated check valve, modular design

• 6: Nominal size NG6 (CETOP 03)

• 1: Pilot configuration (1 = internal pilot from opposite port)

• 6X: Series designation (6X = current design series)

System Design Recommendations

For optimal performance in load-holding applications:

• Size the valve based on maximum system flow, not just average operating conditions

• Consider external pilot operation when cylinder area ratios exceed 2:1 to ensure reliable opening

• Install pressure gauges to monitor pilot pressure during commissioning and troubleshooting

• Use in conjunction with proportional valves for smooth acceleration/deceleration control

• Consider dual-pilot configurations for complex multi-cylinder synchronization requirements
